XTEX Series High-Temperature Resistant Ultra-Flexible Wire for aviation

XTEX Series High-Temperature Resistant Ultra-Flexible Wire for aviation

Overview
The conductor of this product is composed of very fine silver-plated copper monofilament with good flexibility, and the insulation and sheath are composed of fluorine material, which has excellent electrical insulation and high and low temperature resistance, and can be used for a long time in the range of -65℃-+250℃. The products are impact resistant, crack resistant, chemically stable and resistant to acid, alkali, oil and other solvents erosion. The product is soft, easy to peel off the head, widely used in high temperature, low temperature and other special environmental conditions such as the requirement of soft products for electrical equipment and instrumentation line connection.

Execution standard
Q/XT 20020-2022 XTEX series high-performance transmission line Detailed specification of the use of the characteristics of
Temperature range:-65 ℃ ~ +250 ℃;
Rated voltage:XTEX1 series AC 600V:Minimum bending radius:8 times the outer diameter of the cable Solderability:Silver-plated conductor with solderability.

Type and Specification

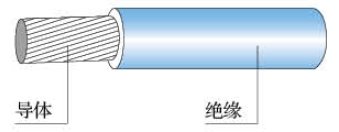

Cable Basic Constructure
