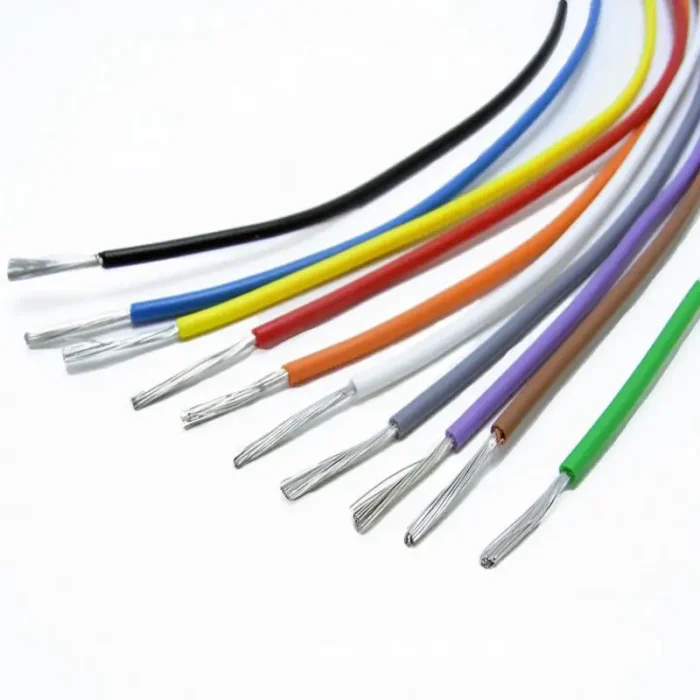

XTE Series High-Temperature Resistant Wire for aviation
XTE Series High-Temperature Resistant Wire for aviation
Overview
The product is silver-plated copper core insulated and sheathed with fluorine material, with excellent electrical insulation properties and good enough resistance to high and low temperatures, and can be used in the range of -65℃. +250℃ range. And it has high impact toughness, anti-cracking, stable chemical properties, resistance to acid, alkali, oil and other solvents and excellent heat aging resistance. The wire is soft and easy to strip, widely used in high temperature, low temperature and other special environmental conditions of electrical equipment and instrumentation line connection.
Execution standard
Q/XT20018-2022 Detailed specification of XTE series high-performance transmission line
Characteristics
Temperature range:-65℃-+250℃:
Rated voltage:AC600V for XTE1 series;
Minimum bending radius:8 times of the cable’s outer diameter
Solderability:Silver-plated conductor is solderable.
Type and Specification
| Type | Cores No. | WAG | Conductor Material | Temperature Resistance℃ | Contructure |
| XTE101*2 | 1~4 | 30~9 | Silver Plated | 250 | Unshielded, Unsheathed |
| XTE131*2 | 1~4 | 30~9 | Silver Plated | 250 | Shielded, Unsheathed |
| XTE111*2 | 1~4 | 30~9 | Silver Plated | 250 | Shielded, sheathed |
| XTE141*2 | 2~4 | 30~9 | Silver Plated | 250 | Unshielded, sheathed |
Cable Basic Constructure
| AWG | Nominal cross section | Structure |
| 30 | 0.06 | 7/0.10 |
| 28 | 0.08 | 7/0.12 |
| 30 | 0.06 | 7/0.10 |
| 28 | 0.08 | 7/0.12 |
| 26 | 0.14 | 19/0.10 |
| 24 | 0.20 | 19/0.12 |
| 22 | 0.35 | 19/0.16 |
| 20 | 0.50 | 19/0.20 |
| 19 | 0.75 | 19/0.23 |
| 18 | 1.0 | 19/0.26 |
| 16 | 1.2 | 19/0.28 |
| 15 | 1.5 | 19/0.32 |
| 14 | 2.0 | 19/0.36 |
| 13 | 2.5 | 37/0.32 |
| 12 | 3.0 | 37/0.32 |
| 11 | 4.0 | 37/0.40 |
| 10 | 5.0 | 37/0.32 |
| 9 | 6.0 | 37/0.45 |
