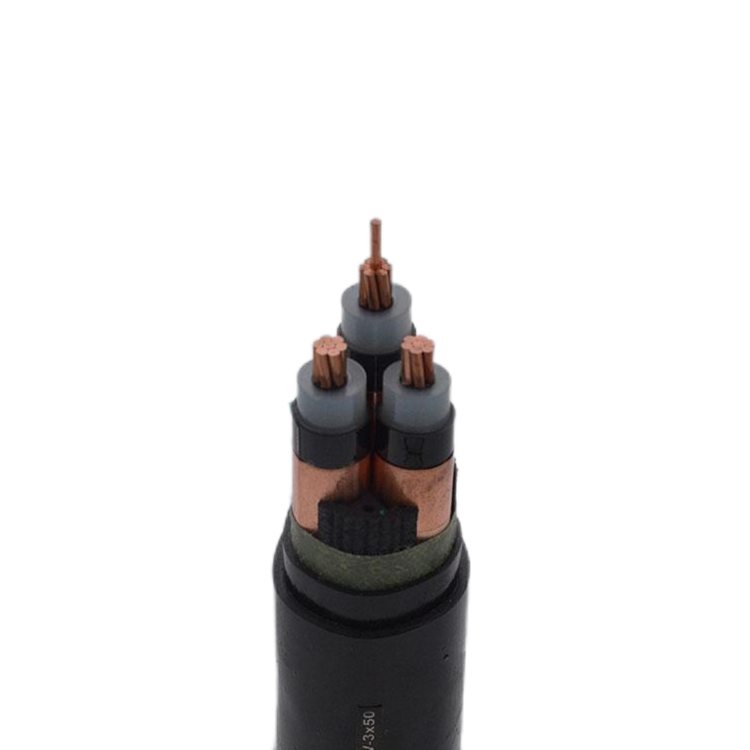

XLPE insulated waterproof power cable for rated voltage up to and including 35kV
XLPE insulated waterproof power cable for rated voltage up to and including 35kV is applies for power transmission in important facilities and bases
Application
This product applies for low and medium voltage power transmission in important facilities and bases which have high reliability requirement of power supply and waterproof, high rainfall zones and low-lying areas, such as ports, hydropower stations, locks, tunnels, chemical industry, metallurgy, reservoirs, water plants, garden lighting etc.
Executive StandardExecutive Standard
Q/WHY 59
Characteristics
1. Use longitudinal water blocking technology to prevent vertical migration of water and reduce the probability of “water tree”
2. Use radial waterproofng technology to prevent water penetration thoroughly.
3. The waterproof layer also has shielding performance, which can effectively prevent the interference of the electromagnetic feld
inside and outside the cable.
4. The water blocking layer has a cushioning effect reducing the cable mechanical damage caused by thermal expansion.
5. Cable sheath is convenient for sealing and waterproofng of cable joints.
6. Cable service life can be increased by 10-15 years.
Service property
1. The rated voltage U0/U of the cable should be 0.6/1kV, 1.8/3kV, 3.6/6kV, 6/kV, 8.7/10kV, 8.7/15kV, 12/20kV, 18/20kV, 18/30kV, 21/35kV, 26/35kV etc.
2. When short circuit (lasting no longer than 5 seconds), maximum operating temperature of cable conductor is 90℃. Maximum operating temperatre of cable conductor is 250℃.
3. When laying, ambient temperature should be not less than 0℃.
4. Allowed bending radius of single core non-armored cable should be not less than 20 times cable diameter of the cable, of singlecore armored cable should be not less than 15 times outer diameter of the cable, of multi-core unarmored cable should be not less than 15 times outer diameter of the cable, of multi-core arored cableshould be not less than 12 times outer diameter of the cable.
Type & Description
| Type | Description |
|---|---|
| FS-YJA FS-YJLA |
Copper or aluminum core XLPE insulated aluminum plastic composite sheathed waterproof power cable |
| FS-YJV FS-YJLV |
Copper or aluminum core XLPE insulated PVC sheathed waterproofpower cable |
| FS-YJY FS-YJLY |
Copper or aluminum core XLPE insulated PE sheathed waterproof power cable |
| FS-YJV22 FS-YJLV22 |
Copper or aluminum core XLPE insulated steel tape armored PVC sheathed waterproof power cable |
| FS-YJV23 FS-YJLV23 |
Copper or aluminum core XLPE insulated steel tape armored PE sheathed waterproof power cable |
| FS-YJV32 FS-YJLV32 |
Copper or aluminum core XLPE insulated thin steel wire armored PVC sheathed waterproof power cable |
| FS-YJV33 FS-YJLV33 |
Copper or aluminum core XLPE insulated thin steel wire armored PE sheathed waterproof power cable |
| FS-YJV42 FS-YJLV42 |
Copper or aluminum core XLPE insulated thick steel wire armored PVC sheathed waterproof power cable |
| FS-YJV43 FS-YJLV43 |
Copper or aluminum core XLPE insulated thick steel wire armored PE sheathed waterproof power cable |
| FS-YJV62 FS-YJLV62 |
Copper or aluminum core XI PE insulated non-magnetic metal tape armored PVC sheathed waterproof power cable |
| FS-YJV63 FS-YJLV63 |
Copper or aluminum core XL PE insulated non-magnetic metal tape armored PE sheathed waterproof power cable |
| FS-YJV72 FS-YJLV72 |
Copper or aluminum core XLPE insulated non-magnetic metal wire armored PVC sheathed waterproof power cable |
| FS-YJV73 FS-YJLV73 |
Copper or aluminum core XLPE insulated non-magnetic metal wire armored PE sheathed waterproof power cable |
Note: The type not listed in the table should be comprised according to following type explanation.
Code & Meaning
| Item | Code | Description |
|---|---|---|
| Characteristic Code | FS | Waterproof power cable |
| Insulation | YJ | XLPE |
| Conductor | – | Class 1 and 2 copper conductor |
| R | Class 5 copper conductor | |
| L | Aluminum conductor | |
| Metal Shield | S | Copper wire winded sparsely |
| Sheath and inner sheath | A | Auminu plastic composite sheath |
| V | PVC | |
| Y | Polyolefin or polyethylene | |
| Armor layer | 2 | Galvanized steel tape armor |
| 3 | Thin steel wire armor | |
| 4 | Thick steel wire armor | |
| 6a | Non-magnetic tape armor | |
| 7b | Non-magnetic wire armor | |
| Outer sheath | 2 | PVC |
| 3 | Polyolefin or polyethylene |
Main technical index
1. Conductor D.C. resistance at 20℃ should comply with stipulations of GB/T3956.
2.Insulation resistance constant should be not less than 3.67MΩ .km.
3. After dying in air or nitrogen, equilibrum for 6 hours, voltage of either end should be not reduced. The finished eable infatableconstant voltage test: fully sealed at both ends of the cable into 50-100kPa
4. Longitudinal water block test of water blocking layer: 95-100’tc circulating l0 times, the length of water penectration to the endsshould be not less than 1500mm (comply with the requirement of1EC60052-2008 appendix).
5. Power frequency voltage test: withstand 2.5U0+2kV for 5 minutes without puncture for cables of rated voltage up to and including 1.8kV; withstand 3.5U0 for 5 minutes without puncture for cables of rated voltage up to and including 3.6kV.
6. Partial discharge test: discharge should not be detected when cable sensitivity is equal or superior to 10pC of rated voltage U0 is 3.6kV and above.
Cable specification and structural parameter
| Type | Rated voltage(kV) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cu | Al | Number of cores | 0.6/1 | 1.8/3 | 3.6/6 | 6/6 6/10 | 8.7/10 8.7/15 | 12/20 | 18/20 | 18/30 | 21/35 | 26/35 |
| FS-YJA FS-YJV FS-YJY |
FS-YJLA FS-YJLV FS-YJLY |
1 | 1.5-630 | 10-630 | 10-630 | 16-630 | 25-630 | 35-630 | 50-630 | 50-630 | 50-630 | 50-630 |
| 2、5 | 1.5-185 | 10-300 | – | – | – | – | – | – | – | – | ||
| 3 | 1.5-300 | 10-300 | 10-300 | 16-300 | 25-300 | 35-300 | 50-300 | 50-300 | 50-300 | 50-300 | ||
| 4 | 1.5-300 | 10-300 | – | – | – | – | – | – | – | – | ||
| 3+1、3+2、4+1 | 4-300 | 10-300 | – | – | – | – | – | – | – | – | ||
| FS-YJLV22 FS-YJLV73 |
FS-YJLV22 FS-YJLV73 |
2、5 | 4-185 | – | – | – | – | – | – | – | – | – |
| 3 | 4-300 | – | 10-300 | 16-300 | 25-300 | 35-300 | 50-300 | 50-300 | 50-300 | 50-300 | ||
| 4、4+1 | 4-300 | – | – | – | – | – | – | – | – | – | ||
| 3+1、3+2 | 4-300 | – | – | – | – | – | – | – | – | – | ||

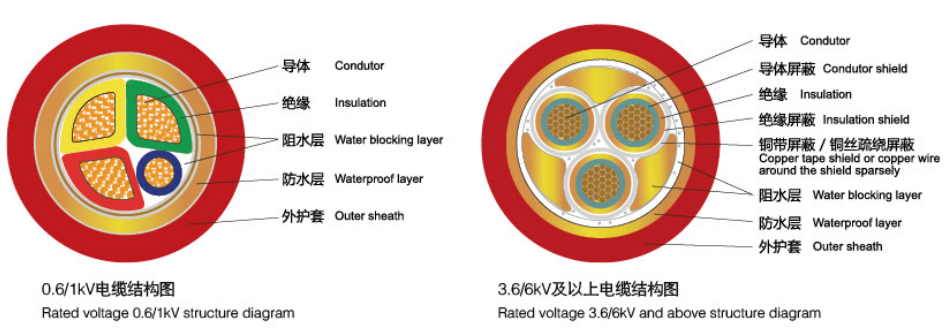

Structure diagram
