XLPE insulated naval ship water-tightness telecommunication cable for rated voltage up to and including 300V
XLPE insulated naval ship water-tightness telecommunication cable for rated voltage up to and including 300V
Application
The cable is intended for electric power, lighting and general control system of requisting submarine, naval ship, oil platform and offshore building etc.
Executive standard
GJB1916
MIL-DTL-24643
IEC 60092-376
IEC60331
IEC 60332-3-22
IEC 60754
IEC 61034
Marking
Insulated core shall identified by color or figure andcomply with the stipulations of GJB1916.The sheath color is black and printed with manufacturename, manuiacture year, type,specifications, voltage and length etc.
Service property parameter
Main Parameter | Performance Index |
---|---|
Rated voltage | 300V |
Long time permissible maximum operating temperature | 90℃ |
Cable minimum bending radius | ≥6D(D:Cable Diameter,mm) |
A.C.voltage test | 1.5kV/5min without puncture |
The cable can endure 6.0MPa water pressure and two hour longtitudinal seal test |
Type and description
Type | Description |
JHYJM85/SC | XLPE insulaled tinned copper wre braided armor XLPO sheathed naval ship water-tightness telecommunication cable, SC type |
JHYJPJM/SC | XLPE insuisled XLPO sheathed naval ship water-tightness telecommunication cabie, SC bype |
JHYJPJM80/SC | XLPE insulaled XLPO inner sheathed tinned copper wire braided armor naval ship water-lightness telecommnunicalion cabie, SC type |
JHYJPJM90/SC | XLPE insulaled XLPO inner inner sheathed galvanized steel wire braided armar naval ship water tightness telecommunication cabie, SC type |
JHYJPJM85/SC | XL.PE insulated XLPO inner sheathed tinned copper wire braided armor XLpO ouier sheathed naval ship water-tightness telecommunication cablc, SC type |
JHYJJPJM95/SC | XL.PE insulated XLPO inner sheathed galvanized steel wire braided armor XLpO ouier sheathed naval ship water-tightness telecommunication cable, SC type |
JHYJPJPSZPM/SC | XL.PE insulated individual shielded double colleclive shielded tinned copper wire braided armur XLPO sheathed naval ship water-tlghiness telecommunication cable, Sc type |
JHYJPJPM/SC | XLPE insulaled indhidual shielded XLPO sheathed naval ship water-tightness telecommunication cable, Sc type |
JHYJPM85/SC | XLPE insulaled indhidual shielded tinned copper wire braided armor XLPO sheathed naval ship waler-tightness telecommunicaticn cable, SC type |
JHYJPJPM80/SC | XLPE insulaled indhidual shielded XLPO inner sheathed tinned copper wre braided amour naval ship telecommunication cable, SC type |
JHYJPJPM90/SC | XL.PE insulaied indr,idual shielded XLPO irner sheathed galvanized steel wire braided armour naval ship water-tightness telecommunicalion cable, SC type |
JHYJPJPM85/SC | XLPE insulated indhidual shielded XLPO inner sheathed tinned copper wire braided armcr XLPO outer sheathed nava-ship waler-lightness telecommunication cabie, SC fype |
JHYJPJPM95/SC | XLPE insulated indlwidual shieldod XLPO inner sheathed galvanizod sleel wire bralded armor XLPO ouler sheathed navalship waler-lighiress belecommunication cable, SC type |
JHYJPJZPM/SC | XLPE insulated indhidual shielded XLPO sheathed navnl ship waler-tighiness telecommunication cable, SC type |
JHYJZPM85/SC | XLPE insulated colective shielded tinnad copper wire braided armor XLpO sheathed nava ship water-tightness telecornmunicallon cable, SC type |
JHYJPJZPM80/SC | XLPE insulated collectihe shielded XLPO inner sheathed tirned copper wire braided armor naval ship water-tighness telecammunication cable, SC fype |
JHYJPJZPM90/SC | XLPE insulated colectinve shielded XLPO inner sheathed gairanized steel wire braided aror naval ship water-tightness telecommunication cable, SC type |
JHYJPJZPM85/SC | XLPE insulaled collective shielded XLPO inner sheathed tinned copper wire braided armor XLPO outer sheathed nava ship water-tightness telecommunicalion cable, SC type |
JHYJPJZPM95/SC | XLPE insulated collective shielded XLPO inmer sheathed galhvanized steel wire braided armour XLPO outer sheathed navaship water-tightness telecommunicabon cable, SC type |

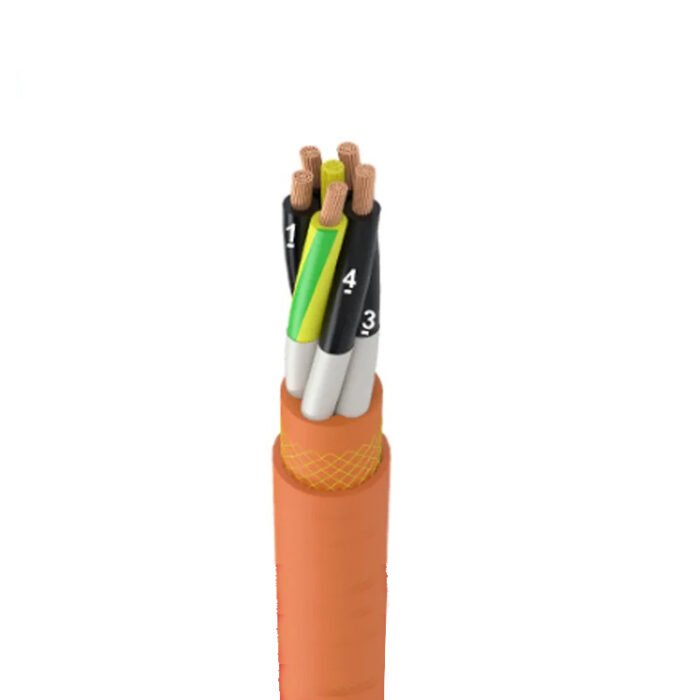

Reference Image
