XLPE Insulated Naval Ship Water-Tightness Power Cable

XLPE insulated naval ship water-tightness power cable is for electric power, lighting and general control systems requesting water-tightness on submarine.

Application:

XLPE insulated naval ship water-tightness power cable is intended for electric power, lighting and general control systems requesting water-tightness on submarine.

Marking:

Insulation shall be recognized by colored tape and comply with the stipulation of GJB1916-94.
The sheath color is red and printed with manufactures name, manufactures year, type, specifications, voltage, length, etc.

Service Property Parameter：

Main Parameter	Performance Index
Rated Voltage	0.6/1kV
Max Operating Temperature	90℃
Minimum Bending Radius	≥6D (D: cable diameter, mm)
A.C. Voltage Test	3.5kV/5min without puncture
Longtitudinal Seal Test	The cable can endure 6.0MPa water pressure and two hour longtitudinal seal test

Executive Standard：

Design	GJB1916
Design	MIL-DTL-24643
Design	IEC 60092-353
Flame Retardant	IEC 60332-3-22
Halogen Free	IEC 60754
Low Smoke	IEC 61034

Type & Description：

Type	Description
JYJM85/SC	XLPE insulated tinned copper wire braided armor XLPO sheathed naval ship water-tightness power cable, SC type
JYJPJM/SC	XLPE insulated XLPO sheathed naval ship water-tightness power cable, SC type
JYJPJM80/SC	XLPE insulated XLPO inner sheathed tinned copper wire braided armor naval ship water-tightness power cable, SC type
JYJPJM90/SC	XLPE insulated XLPO inner sheathed galvanized steel wire braided armor naval ship water-tightness power cable, SC type

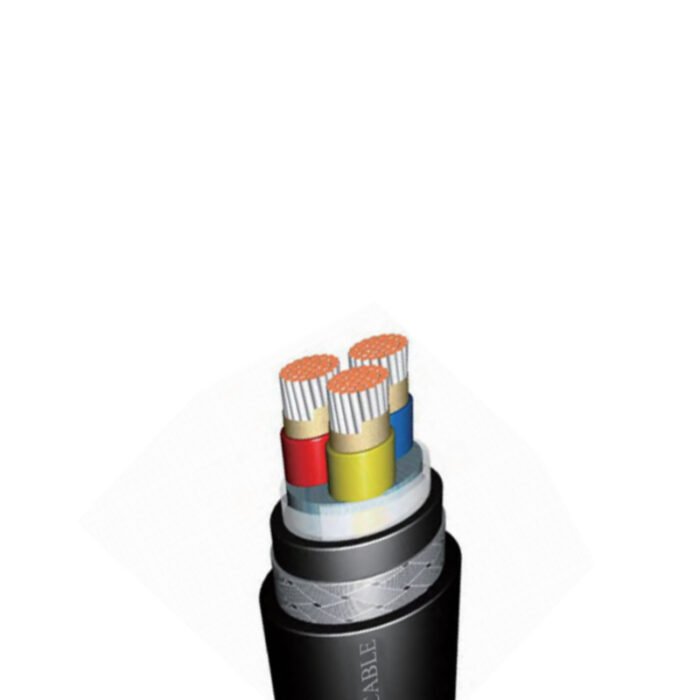

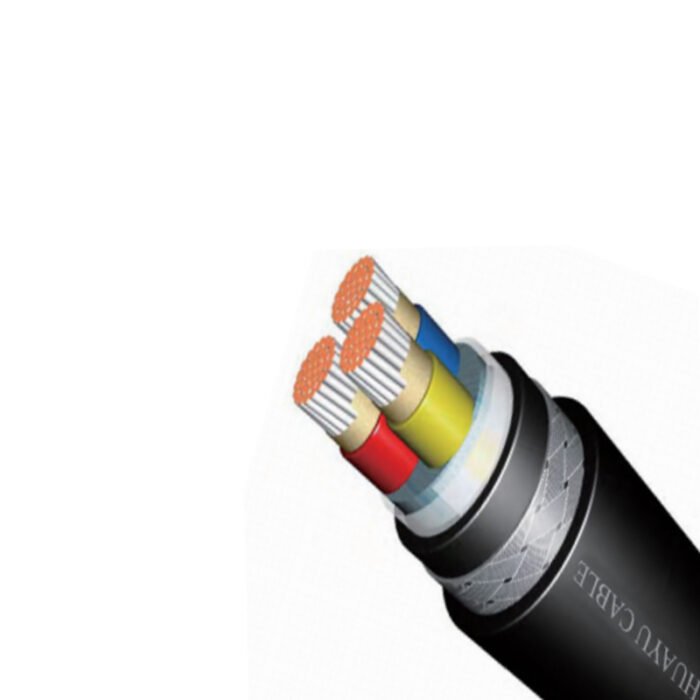

JYJPJM85/SC	XLPE insulated XLPO inner sheathed tinned copper wire braided armor XLPO outer sheathed naval ship water-tightness power cable, SC type
JYJPJM95/SC	XLPE insulated XLPO inner sheathed galvanized steel wire braided armor XLPO outer sheathed naval ship water-tightness power cable, SC type
