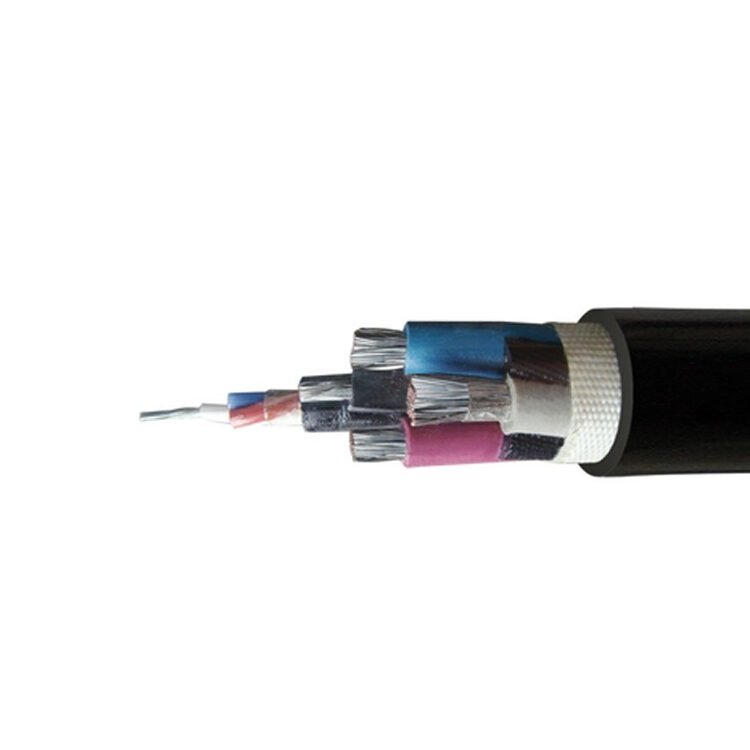

XLPE insulated Fire-Resisting shipboard power cable NA type
XLPE insulated Fire-Resisting shipboard power cable NA type, available to metallurgical, chemical, power plant and mining
Application:
XLPE insulated Fire-Resisting shipboard power cable is intended for electric power, lighting andgeneral control system of shipboard,oil platform and offshore building, etc, which are requested fire-resistance. It is also available to metallurgical industry, chemical works, power plant, mining enterprises, etc.
Marking:
Insulated core shall identified by color or figure and comply with the stipulations of GB/T6995.5-2008.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length, etc.
Service Property Parameter：
| Main Parameter | Performance Index |
|---|---|
| Rated Voltage | 0.6/1kV |
| Max Operating Temperature | 90℃ |
| Minimum Bending Radius | ≥6D (D: cable diameter, mm) |
| A.C. Voltage Test | 3.5kV/5min without puncture |
Executive Standard：
| Design | IEC 60092-353 |
| Conductor | IEC 60228 |
| Insulation | IEC 60092-351 |
| Sheath | IEC 60092-359 |
| Flame Retardant | IEC 60332-3-22 |
| Fire-Resistant | IEC 60331 |
| Halogen Free | IEC 60754 |
| Low Smoke | IEC 61034 |
Type & Description：
| Type | Description |
|---|---|
| CJV/NA | XLPE insulated PVC sheathed fire-resistant shipboard power cable, NA type |
| CJP/NSC | XLPE insulated PO(SHF1) sheathed low-smoke halogen-free flame-retardant fire-resistant shipboard power cable, NSC type |
| CJPJ/NSC | XLPE insulated Cross-linked XLPE(SHF2) sheathed low-smoke halogen-free flame-retardant fire-resistant shipboard power cable, NSC type |
| CJV80/NA | XLPE insulated PVC inner sheathed tinned copper wire braided fire-resistant shipboard power cable, NA type |
| CJV90/NA | XLPE insulated PVC inner sheathed galvanized steel wire braided fire-resistant shipboard power cable, NA type |
| CJP80/NSC | XLPE insulated PO(SHF1) inner sheathed tinned copper wire braided low-smoke halogen-free flame-retardant fire-resistant shipboard power cable, NSC type |
| CJP90/NSC | XLPE insulated Po(SHF1) inner sheathed galvanized steel wire braided low-smoke halogen-free flame-retardant fire-resistant shipboard power cable, NSC type |
| CJPJ80/NSC | XLPE insulated Cross-linked XLPO(SHF2) inner sheathed tinned copper wire braided low-smoke halogen-free flame-retardant fire-resistant shipboard power cable, NSC type |
| CJPJ90/NSC | XLPE insulated Cross-linked XLPO(SHF2) inner sheathed galvanized steel wire braided fire-resistant shipboard power cable, NSC type |
| CJ82/NA | XLPE insulated tinned copper wire braided PVC outer sheathed fire-resistant shi ard power cable, NA type |
| CJ86/NSC | XLPE insulated tinned copper wire braided PO(SHF1) outer sheathed low-s:rake halogen-free flame-retardant fire-resistant shipboard power cable, NSC type |
| CJ85/NSC | XLPE insulated tinned copper wire braided Cross-linked XLPO(SHF2) outer sheathed low-smoke halogen-free flame-retardant fire-resistant shipboard power cable, NSC type |
| CJV82/NA | XLPE insulated PVC inner sheathed tinned copper wire braided PVC outer sheathed fire-resistant shipboard power cable, NA type |
| CJV92/NA | XLPE insulated PVC inner sheathed galvanized steel wire braided PVC outer sheathed fire-resistant shipboard power cable, NA type |
| CJPJ85/NSC | XLPE insulated Cross-linked XLPO(SHF2) inner sheathed tinned copper wire braided Cross-linked XLPO (SHF2) outer sheathed low-smoke halogen-free flame-retardant fire-resistant shipboard power cable, NSC type |
| CJPJ95/NSC | XLPE insulated Cross-linked XLPO(SHF2) inner sheathed galvanized steel wire braided Cross-linked XLPO (SHF2) outer sheathed low-smoke halogen-free flame-retardant fire-resistant shipboard power cable, NSC type |
| CJP86/NSC | XLPE insulated PO(SHF1) inner sheathed tinned copper wire braided PO(SHF1) outer sheathed low-smoke halogen-free flame-retardant fire-resistant shipboard power cable, NSC type |
| CJP96/NSC | XLPE insulated PO(SHF1) inner sheathed galvanized steel wire braided PO(SHF1) outer sheathed low-smoke halogen-free flame-retardant fire-resistant shipboard power cable, NSC type |
