XLPE insulated Anti-Termite & Anti-Rat Environmental Power Cable
XLPE insulated Anti-Termite & Anti-Rat Environmental Power Cable for the occasion that rodents appear frequently and the area where humid tropics, etc
Application
This product is suitable for the occasion that rodents appear frequently and the area where humid tropics and termites are concentrated in, mainly used in ports, warehouses, power plants, bridges, subways, metallurgy and chemical industries etc. It can prevent rats and termites bite well, and ensure cable operatmg securely and credibly.
Executive StandardExecutive Standard
This product conforms to the requirements of GB/T 12706 (equivalently adopt IEC 60502 standard)
Flame retardant tests conforms to the requirements of GB/T 19666 (equivalently adopt lEC 60332-3 standard)
Low smoke performance conforms to the requirements of GB/T 17651 (equivalently adopt lEC 60134 standard)
Halogen free performance conforms to the requirements of GB/T 17650 (equivalently adopt IEC 60754 standard)
Service Property
1. The rated voltage U0/U of the cable should be 0.6/kv, 1.8/3kV, 3.6/6ky, 6/6kV, 8.7/10kV, 8.7/15kV, 12/20kV,18/20kV, 18/30kV, 21/35kV, 26/35kV, etc.
2. When short circuit (lasting no longer than 5 seconds), maximum operating temperature of cable conductor should be 90℃. Maximum operating temperature of cable conductor should be 250℃.
3. When laying, cable can withstand greater horizontal drops.
4. When laying, ambient temperature should be not less than 0℃.
5. Allowed bending radius of single core unarmored cable should be not less than 20 times cable diameter of the cable; of single core armored cable should be not less than 15 times outer diameter of the cable; of multi-core unarmored cable should be not less than 15 times outer diameter of the cable; of multi-core armored cable should be not less than 12 times outer diameter of the cable.
Type & Description
| Type | Description |
|---|---|
| FSY-YJE FSY-YJLE | Copper or aluminum core XLPE insulated low smoke halogen free anti-termite and anti-rat polyolefin sheathed environmental power cable |
| FSY-YJE23 FSY-YJLE23 | Copper or aluminum core XLPE insulated steel tape armored low smoke halogen free anti-termite and anti-rat polyolefin sheathed environmental power cable |
| FSY-YJE33 FSY-YJLE33 | Copper or aluminum core XLPE insulated thin steel wire anmored low smoke halogen free anti-termite and anti-rat polyolefin sheathed environental power cable |
| FSY-YJE43 FSY-YJLE43 | Copper or aluminum core XLPE insulated thick steel wire armored low smoke halogen free anti-termite and anti-rat polyolefin sheathed environmental power cable |
| FSY-YJE63 FSY-YJLE63 | Copper or aluminum core XLPE insulated non-magnetic metal tape armored low smoke halogen free anti-termite and anti-rat polyolefin sheathed environmental power cable |
| FSY-YJE73 FSY-YJLE73 | Copper or aluminum core XLPE insulated non-magnetic metal wire armored low smoke halogen free anti-termite and anti-rat polyolefin sheathed environmental power cable |
Note: The type not listed in the table should be comprised according to following type explanation.
Code & Meaning
| Item | Code | Description |
|---|---|---|
| Characteristic Code | FSY | Low smoke halogen free anti-termite and anti-rat environmental power cable |
| Insulation | YJ | XLPE |
| Conductor | – | Class 1 and 2 copper conductor |
| R | Class 5 copper conductor | |
| L | Aluminum conductor | |
| Metal Shield | S | Copper wire winded sparsely |
| Sheath and inner sheath | E | Low smoke halogen free flame retardant polyolefin |
| Armor layer | 2 | Galvanized steel tape armor |
| 3 | Thin steel wire armor | |
| 4 | Thick steel wire armor | |
| 6a | Non-magnetic metal tape armor | |
| 7b | Non-magnetic metal wire armor | |
| Outer sheath | 3 | Low smoke halogen free polyolefin sheath |
Main technical index
1. Cable technical performance should comply with stipulations of GB/T12706-2020.
2. Cable anti-termite performance should comply with stipulations of GB/T2951.38.
3. Conductor dc. resistance at 20℃ should comply with stipulations of GB/T3956.
4. Power freguency voltage test: withstand 2.5U0+2kV for 5 minutes without puncture for cables of rated voltage up to and including 1.8kV, withstand 3.5U0 for 5 minutes without puncture for cables of rated voltage up to and including 3.6kV.
5. Partial discharge test: discharge should not be detected when cable sensitivity is equal or superior to 10pC of rated voltage U0 is 3.6kV and above.
Cable specification and structural parameter
| Type | Rated voltage(kV) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cu | Al | Number of cores | 0.6/1 | 1.8/3 | 3.6/6 | 6/6 6/10 | 8.7/10 8.7/15 | 12/20 | 18/20 | 18/30 | 21/35 | 26/35 |
| FSY-YJE | FSY-YJLE | 1 | 1.5-630 | 10-630 | 10-630 | 16-630 | 25-630 | 35-630 | 50-630 | 50-630 | 50-630 | 50-630 |
| 2、5 | 1.5-185 | 10-300 | – | – | – | – | – | – | – | – | ||
| 3 | 1.5-300 | 10-300 | 10-300 | 16-300 | 25-300 | 35-300 | 50-300 | 50-300 | 50-300 | 50-300 | ||
| 4 | 1.5-300 | 10-300 | – | – | – | – | – | – | – | – | ||
| 3+1、3+2、4+1 | 4-300 | 10-300 | – | – | – | – | – | – | – | – | ||
| FSY-YJE23 FSY-YJF33 FSY-YJE43 FSY-YJE63 FSY-YJE73 | FSY-YJLE23 FSY-YJLF33 FSY-YJLE43 FSY-YJLE63 FSY-YJLE73 | 2、5 | 4-185 | – | – | – | – | – | – | – | – | – |
| 3 | 4-300 | – | 10-300 | 16-300 | 25-300 | 35-300 | 50-300 | 50-300 | 50-300 | 50-300 | ||
| 4、4+1 | 4-300 | – | – | – | – | – | – | – | – | – | ||
| 3+1、3+2 | 4-300 | – | – | – | – | – | – | – | – | – | ||

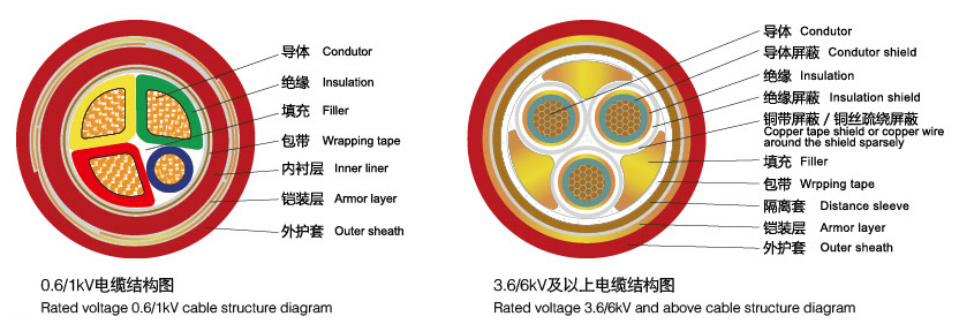

Structure diagram
