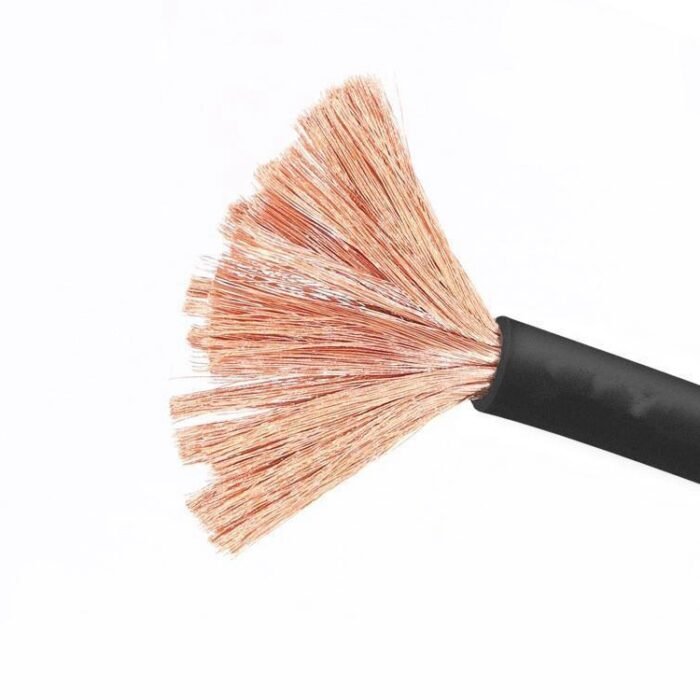

Welding Cable

Application
The cables are suitable for welding machine as secondary earth wire with secondary side to-ground volatage not more than 200vAC and impulse voltage peak 400V DC, or for connecting electrode holders.Continuous operating temperature ≤60℃

Executive standard
IEC60245

Service property
1. Maximum long-term allowed operating temperature of cable conductor should be 60℃2. The rated voltage of the cable(wire) should be 500V, 1000V.
3. Allowed bending radius when laying should be not less than 4 times outer diameter ofthe cable.

Type and Description

Description International type Chinese type
Welding cable with Rubber compound sheath H01N2-D ( Common flexible)
H01N2-E( Extra flexible)		 60245 IEC 81 YH
Welding cable with Polychloroprene compound (PCP) or other equivalent synthetic elastomer sheath
60245 IEC 82 YHF

Main technical parameter
H01N2-D 60245IEC81(YH) 60245IEC82(YHF)

Nom. Area mm2 Max. Dia.of wire mm Nom. Cover Thickness mm Average O.D. mm Maximum DC Resistance at 20℃Ω/km
Min. Max. Tinned copper Untinned copper
10


0.21		 2.0 7.7 9.7 1.95 1.91
16 2.0 8.8 11.0 1.24 1.21
25 2.0 10.1 12.7 0.795 0.780
35 2.0 11.4 14.2 0.565 0.554
50 2.2 13.2 16.5 0.393 0.386
70 2.4 15.3 19.2 0.277 0.272
95 2.6 17.1 21.4 0.210 0.206
120  0.51 2.8 19.2 24.0 0.164 0.161
150 3.0 21.1 26.4 0.132 0.129
185 3.2 23.1 28.9 0.108 0.106


H01N2-E 60245 IEC 81(YH) 60245 IEC 82 (YHF)

Nom. Area mm2 Max. Dia.of wire mm Nom. Cover Thickness mm Average O.D. mm Maximum DC Resistance at 20℃Ω/km
Min. Max. Tinned copper Untinned copper
10





0.21

 1.2 6.2 7.8 1.95 1.91
16 1.2 7.3 9.1 1.24 1.21
25 1.2 8.6 10.8 0.795 0.780
35 1.2 9.8 12.3 0.565 0.554
50 1.5 11.9 14.8 0.393 0.386
70 1.5 13.6 17.0 0.277 0.272
95 1.8 15.6 19.5 0.210 0.206
120

0.51

 1.8 17.2 21.6 0.164 0.161
150 1.8 18.8 23.5 0.132 0.129
185 1.8 20.4 25.5 0.108 0.106
