Model THSFPF 1x4x24A High-Temperature Resistant 100Ω Special Transmission Cable for aerospace

Model THSFPF 1x4x24A High-Temperature Resistant 100Ω Special Transmission Cable for aerospace

OVERVIEW
THSFPFIx4x24A high-temperature-resistant special transmission cable adopts fluorine material insulation and sheath, which makes the cable have the features of high and low temperature resistance (-60℃~+180℃), aging, corrosion resistance, flame retardant, three-proof, light weight, small outer diameter and excellent mechanical toughness, etc. The product is designed and developed with reference to GJB 973A-2004, GJB 773A-2000 and American Standard ARINC 664. The products are designed and developed with reference to GJB 973A-2004, GJB 773A-2000 and American Standard ARINC 664, which can provide highly reliable service in harsh environments, and are suitable for signal transmission of LVDS signals for avionics devices, Ethernet and other signal transmission cables.

Execution Standard
Q/XT 20006-2021THSFPF1x4x24A Aviation 100Ω High Temperature Resistant Specialty Transmission Cable Detailed Specification

Characteristics
Rated voltage: AC 600V.
Rated working temperature:-65℃~+180℃.
Minimum bending radius during installation: 8 times of the product’s outer diameter; Maximum operating frequency: 100MHz.

Model Specification and Name
THSFPF 1x4x24A

Main Performance
●Electrical Performance
Table 1 Electrical properties of finished cables

●Mechanical and Physical Properties
Tensile strength: insulation not less than 13.8N/mm, sheath not less than 20.7N/mm’;
Elongation at break: insulation not less than 100%, sheath not less than 200%.
●High and low temperature performance
High-temperature aging test: after (230+5)℃/96h, the insulation will not break through at high voltage and the sheath will not crack after winding.
High-temperature winding test: after (230±5)℃/4h, the sheath does not crack.
Low-temperature winding test: after (-65±5)℃/4h, the insulation of high-voltage does not break through, the sheath does not crack;
Cable combustion test: in the fire 30s, no more than 30s under the conditions of delayed combustion, the delayed combustion length of no more than 76mm.

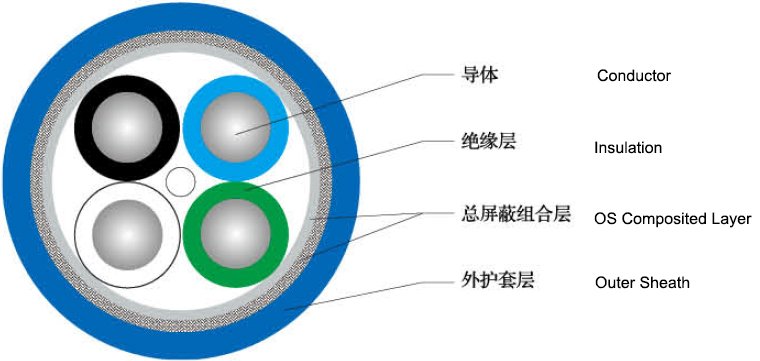

Cable Diagram

Product structure characteristics
Table 2 Product structure size and weight

***Color identification: insulation white/blue;black/green; sheath blue
