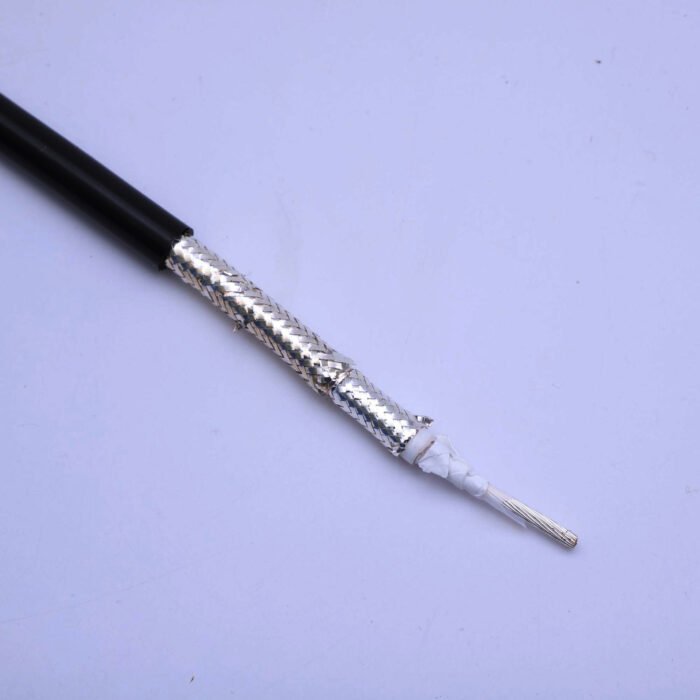

SYV Series Solid PE Insulated RF Coaxial Cable

GET A QUOTE

SYV Series Solid PE Insulated RF Coaxial Cable

OVERVIEW
The products are developed on the basis of GJB 973A-2004 General Specification for Flexible and Semi-Hard RF Cables and GB/T14864-2013 Solid PolyZene Insulated Flexible RF Cables. The products are suitable for transmitting RF signals in radio communication, broadcasting and related electronic equipment as well as high-frequency signal transmission in branch lines of CCTV common antenna system, subscriber lines and other electronic equipments, and are suitable for use in common occasions.

Execution standard
GJB 973A-2004 General Specification for Flexible and Semi-rigid RF Cables GB/T 14864-2013 Solid Polyethylene Insulated Flexible RF Cables

Characteristics
Operating temperature range:-30℃~+70℃.
Minimum bending radius: static 5 times the outer diameter of the cable; dynamic 10 times the outer diameter of the cable

Product structure


SYV series solid polyethylene insulation RF coaxial cable structure size, performance

Sr.No. Type&Specification Structure &Size performance index Max.Weight
kg/km
Inner Conductor Nominal insulation Outer Dia.
mm		 Outer conductor Sheath Characteristic impedance Ω Insulation test voltage kV Attenuation constant(dB/m)@200MHz
Structure n/m OutyerDia.
mm		 Braiding Type Strands Dia. Braiding Density not lower than % Min.Thickness .mm Max.Outer Dia.
1 SYV-50-2
SYV-50-2-1		 7/0.16 0.48 1.50 Single 0.10 90 0.30 3.00 50±2 2.0 0.450 16
2 SYV-50-2-2
SYV-50-2-41		 1/0.68 0.68 2.20 Single 0.14 90 0.40 4.20 50±2 3.0 0.310 35
3 SYV-50-3
SYV-50-3-3
SYV-50-3-4		 1/0.90 0.90 2.95 Single 0.14 90 0.58 5.20 50±2 4.0 0.220 44
4 SYV-50-3-5 1/0.90 1.40 2.95 Double 0.14 90 0.60 6.00 50±2 4.2 0.220 66
5 SYV-50-5-1 1/1.40 1.40 4.80 Single 0.14 90 0.69 7.50 50±2 6.5 0.150 80
6 SYV-50-7
SYV-50-7-1
SYV-50-7-2		 7/0.75 2.25 7.25 Single 0.14 90 0.85 10.60 50±2 10.0 0.110 176
7 SYV-50-9
SYV-50-9-1
SYV-50-9-2		 7/0.95 2.85 9.00 Single 0.18 90 0.96 12.60 50±2 12.0 0.095 261
8 SYV-50-12 7/1.15 3.45 11.50 Single 0.18 90 1.00 15.40 50±2 15.0 0.080 308
9 SYV-75-2-1 7/0.10 0.30 1.50 Single 0.10 90 0.30 3.00 75±3 1.5 0.570 16
10 SYV-75-3
SYV-75-3-41		 7/0.17 0.51 3.00 Single 0.14 90 0.45 5.25 75±3 2.0 0.280 47
11 SYV-75-4-1 7/0.21 0.63 3.70 Single 0.14 90 0.60 6.20 75±3 4.2 0.220 66
12 SYV-75-4-2 7/0.21 0.63 3.70 Double 0.14 90 0.65 6.90 75±3 4.0 0.220 83
13 SYV-75-5
SYV-75-5-1
SYV-75-5-41
SYV-75-5-44		 1/0.75 0.75 4.80 Single 0.14 90 0.69 7.50 75±3 5.5 0.150 105
14 SYV-75-7 7/0.40 1.20 7.25 Single 0.17 90 0.85 10.60 75±3 8.0 0.120 165
