Spreader reeling cable 0.6/1kV

GET A QUOTE

Spreader reeling cable 0.6/1kV is for reeling under a higher machinery stress, movable facilities such as movable cables’s transportation & vehicles, etc.

Application

Spreader reeling cable 0.6/1kV is intended for reeling under a higher machinery stress, movable facilities such as movable cables’s transportation and vehicles, as well as vertically reeling and mining on the ground/well bottoms.

Marking

Insulated core shall identified by color or figure and comply with the stipulations of Q/WHY 55-2013.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage rating, etc.

Service Property Parameter

Main Parameter Performance Index
Rated Voltage 0.6/1kV
Max Operating Temperature 90℃
Minimum Bending Radius ≥6D (D: cable diameter, mm)
A.C. Voltage Test 3.5kV/5min without puncture

Executive Standard

Design Q/WHY 55
Flame Retardant GB/T19666

Type & Description

Type Description
GJPEFR-0.6/1kV EPR insulated PCP inner sheathed kevlar braided reinforcement PCP outer sheathed port machinery cable

Cable Specification

Type Specification
GJPEFR-0.6/1kV 24×2.5；44×2.5; 56×2.5

Note: The specification can be added as per customer required.

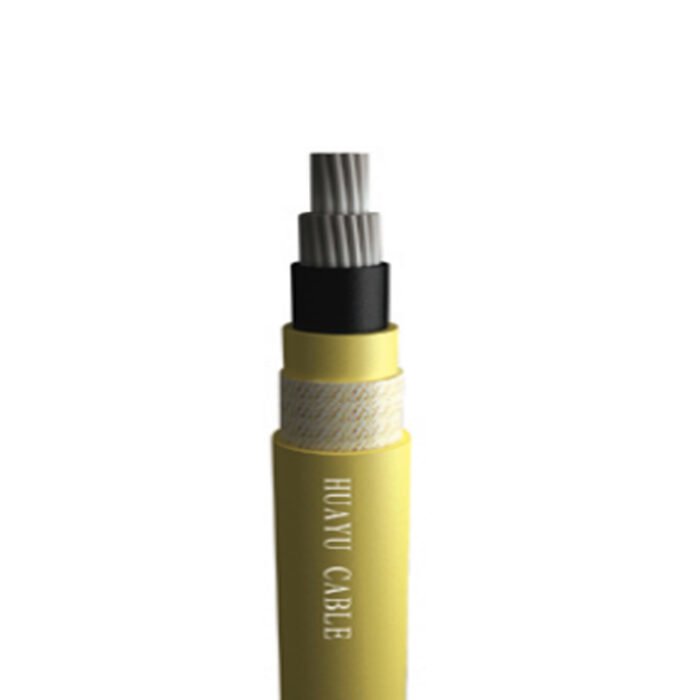

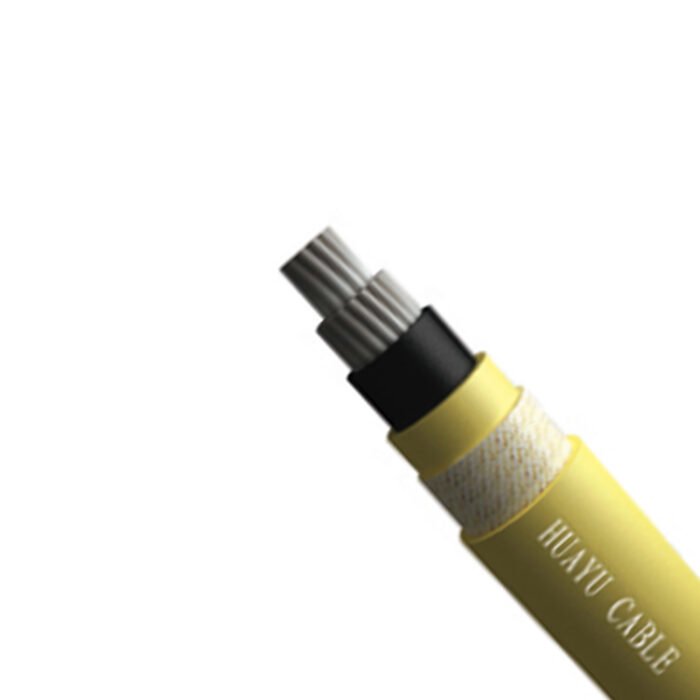

Product Image
