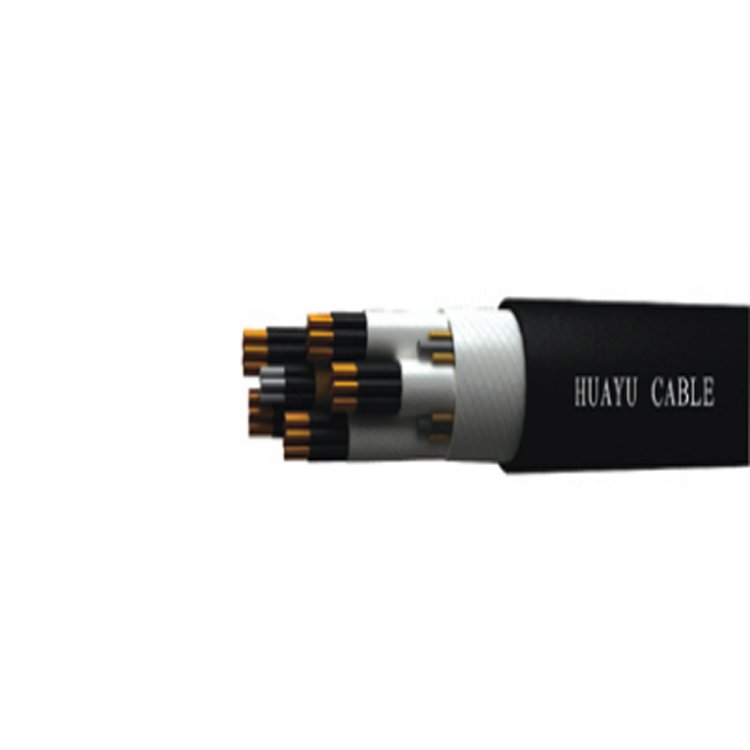

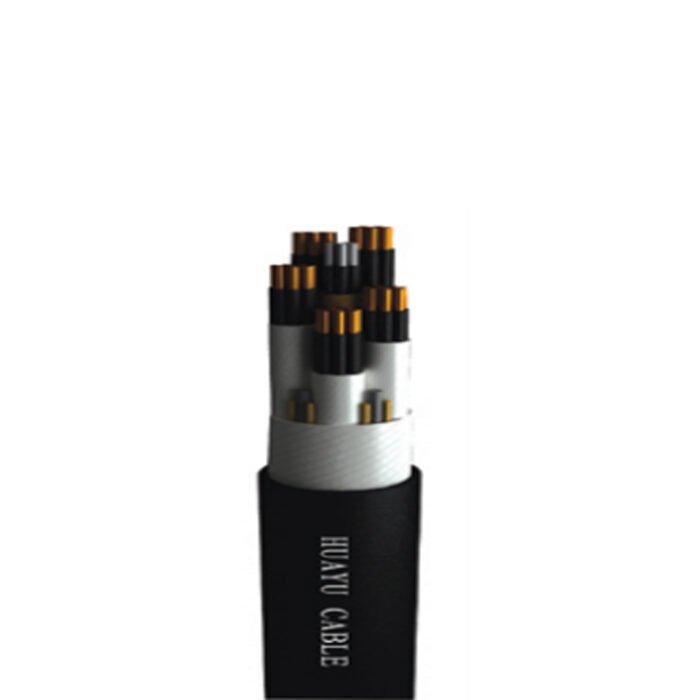

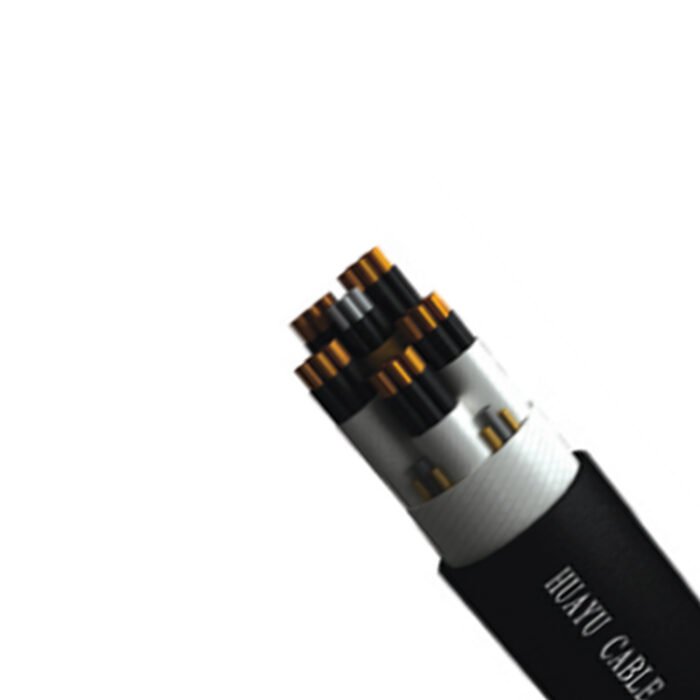

Spreader Basket Cable 0.6/1kV
Spreader Basket Cable 0.6/1kV is for feeder wire of material receiving on port and dock lifting facilities, especially used on vertical rod basket site
Application:
Spreader Basket Cable 0.6/1kV is intended for feeder wire of material receiving on port and dock lifting facilities, especially used on vertical rod basket site with high machinery stress.
Marking:
Insulated core shall identified by color or figure and comply with the stipulations of Q/WHY 55-2013.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage rating, etc.
Service Property Parameter：
| Main Parameter | Performance Index |
|---|---|
| Rated Voltage | 0.6/1kV |
| Max Operating Temperature | 90℃ |
| Minimum Bending Radius | ≥6D (D: cable diameter, mm) |
| A.C. Voltage Test | 3.5kV/5min without puncture |
Executive Standard：
| Design | Q/WHY 55 |
| Flame Retardant | GB/T19666 |
Type & Description：
| Type | Description |
|---|---|
| GGLVUR-0.6/1kV | EPR insulated PUR inner sheathed kevlar braided reinforced PUR outer sheathed port machinery cable |
Cable Specification：
| Type | Specification（mm²） |
|---|---|
| GGLVUR-0.6/1kV | 30x2.5; 36x2.5; 42x2.5; 48x2.5; 54x2.5 |
Note: The specification can be added as per customer required.
