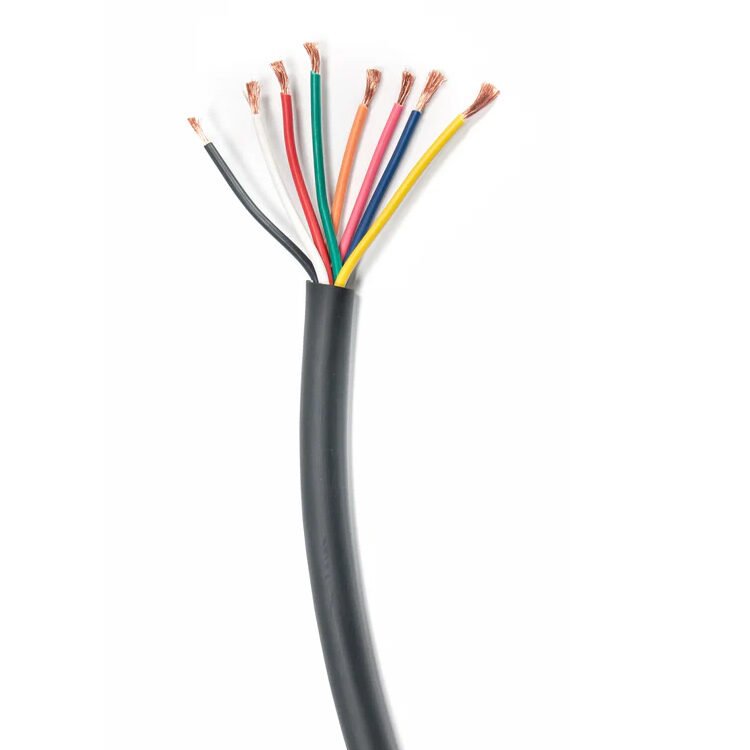

Silicon Rubber Fire-Resisting insulated shipboard power cable NA type

Silicon Rubber Fire-Resisting insulated shipboard power cable NA type, available to metallurgical, chemical, power plant and mining.

Application

The cable is intended for electric power, lighting andgeneral control system of shipboard, oil platform and offshore building, etc, which are requested fire-resistance. It is also available to metallurgical industry, chemical works, power plant and mining enterprises, etc.

Marking

Insulated core shall identified by color or figure andcomply with the stipulations of GB/T6995.5-2008.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.

Service Property Parameter

Main Parameter Performance Index
Rated Voltage 0.6/1kV
Max Operating Temperature 95℃
Min Bending Radius ≥6D (D: cable diameter, mm)
A.C. Voltage Test 3.5kV/5min without puncture

Executive Standard

Design IEC 60092-353
Conductor IEC 60228
Insulation IEC 60092-351
Sheath IEC 60092-359
Flame Retardant IEC 60332-3-22
Fire-Resistant IEC 60331
Halogen Free IEC 60754
Low Smoke IEC 61034

Type & Description

Type Description
CSS/NA Silicone rubber insulated silicone rubber sheathed Fire-Resisting shipboard power cable, NA type
CSSR/NA Silicone rubber insulated silicone rubber sheathed Fire-Resisting flexible shipboard power cable, NA type
CSPJ/NSC Silicone rubber insulated XLPO(SHF2) sheathed low-smoke halogen-free flame-retardant Fire-Resisting shipboard power cable, NSC type
CSPJR/NSC Silicone rubber insulated XLPO(SHF2) sheathed low-smoke halogen-free flame-retardant Fire-Resisting flexible shipboard power cable. NSC type
