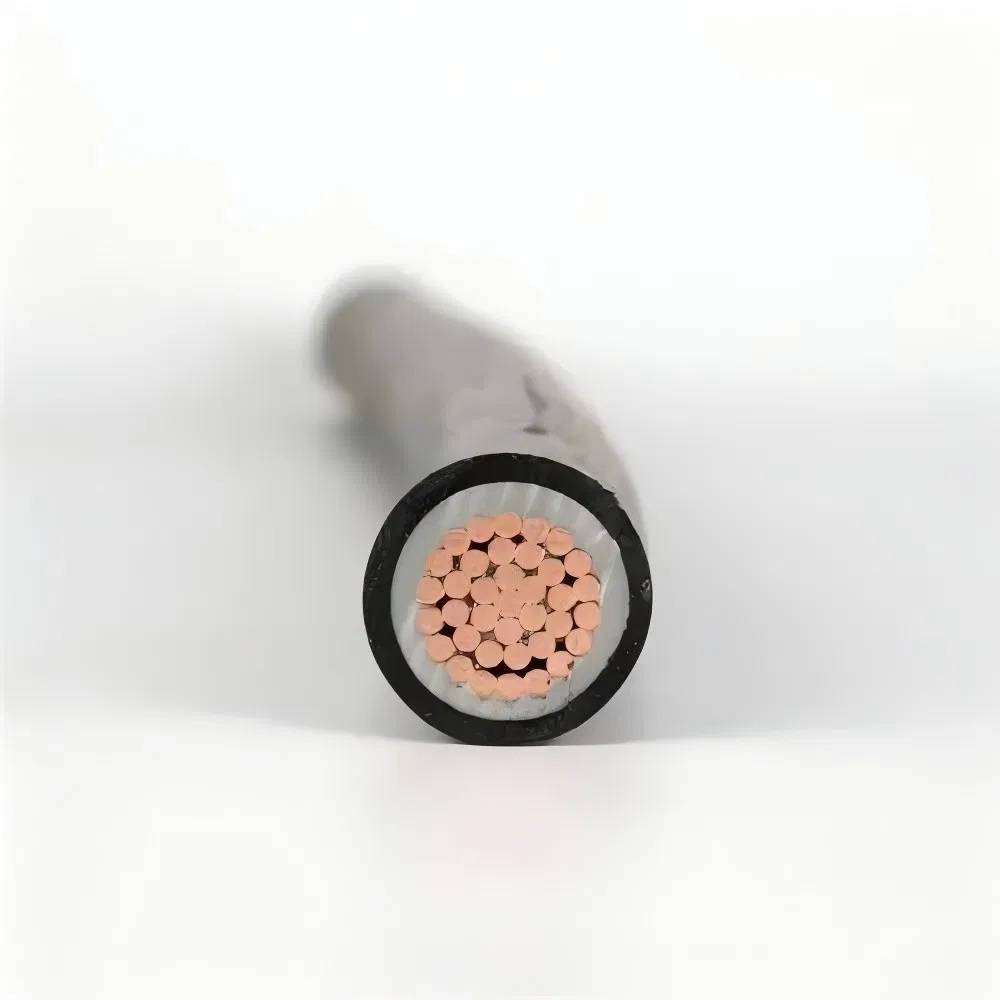

Rubber cable for underwater sound transducer

Rubber cable for underwater sound transducer

Application

The cable is intended for sonar transducer system fixed placed in naval ships, submarine and undersea, and adaplo submarine pump and connecting circuit for undersea electrical equipment which the cable is require to have water-tight performance

Executive standard

GJB1916

IEC 60092-353

IEC 60092-351

IEC 60092-359

IEC 60332-3-22

Marking

Insulated core shall identified by figure,The sheath color is black and printed with manufacturename, manufacturing year ,manuiacture year, type,specifications, voltage andlength etc.

Service propertyparameter

Main parameter                                                            Performance index

Rated voltage                                                                              500V,1000V

long time permissible maximum operating temperature        90℃

The  cable can endure water pressure 4.41MPa and two hours crosswise seal test.

the conductor resistance of cable at 20℃ ,comply with the stipulations of GJB1916.

The insulation resistance of cable after 90days immersing in the water at room temperature

Core-core not less than 150MΩ.km

Core-shielding  not less than 150MΩ.km

Shielding-water  not less than 75MΩ.km

Type and description

TYPE	Description
JEPYH-500	EPR insulated tinned copper wire braided shielding natural SBR inner sheathed CSP outer sheathed rubber cable for underwatesound transducer
JEPYH-1000	EPR insulated tinned copper wire braided shielding natural SBR inner sheathed CSP outer sheathed rubber cable for underwatesound transducer
