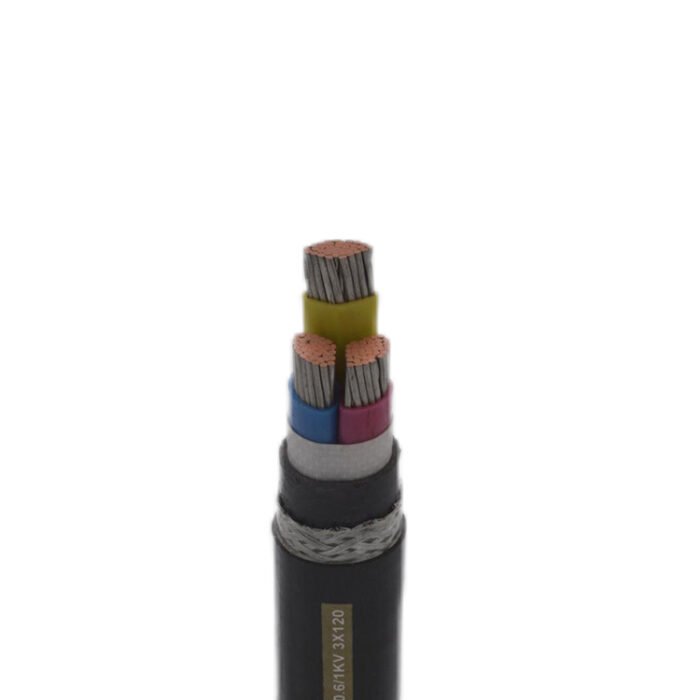

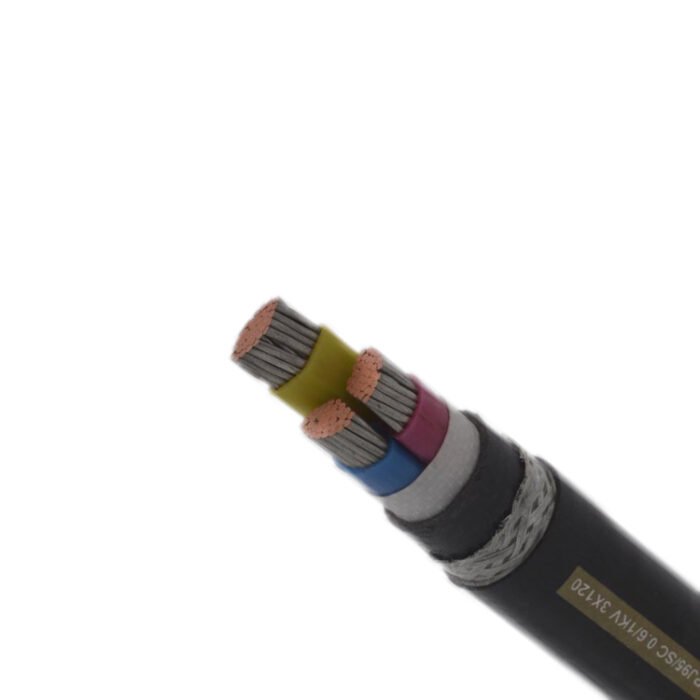

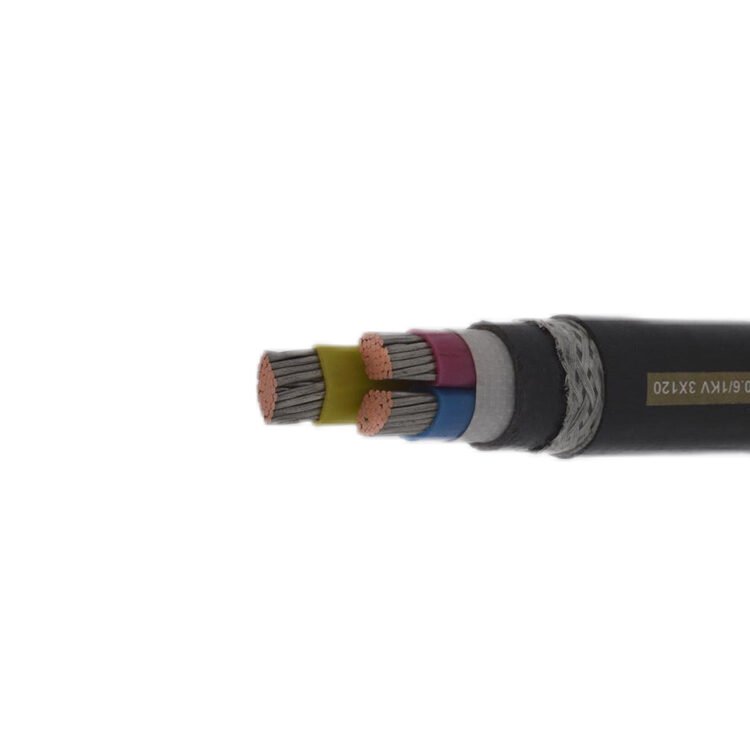

Power Cable for Offshore Oil Platform 0.6/1kV
Power cable for offshore oil platform 0.6/1kV is for electric power, ligihting & general control system of offshore oil platform & offshore building etc.
Application:
Power cable for offshore oil platform 0.6/1kV is intended for electric power, ligihting and general control system of offshore oil platform and offshore building etc.
Marking:
Insulated core shall identified by color or figure and comply with the stipulations of GB/T6995.5-2008.
The sheath color is black and printed with manufactures, name, type, specifications, voltage grade, length, date of manufacture and combustion characteristic code.
Service Property Parameter：
| Main Parameter | Performance Index |
|---|---|
| Rated Voltage | 0.6/1kV |
| Max Operating Temperature | 90℃ |
| Minimum Bending Radius | ≥6D (D: cable diameter, mm) |
| A.C. Voltage Test | 3.5kV/5min without puncture |
Executive Standard：
| Design | IEC 60092-353 |
| Conductor | IEC 60228 |
| Insulation | IEC 60092-351 |
| Sheath | IEC 60092-359 |
| Flame Retardant | IEC 60332-3-22 |
| Halogen Free | IEC 60754 |
| Low Smoke | IEC 61034 |
Type & Description：
| Type | Description |
|---|---|
| CEP86/SC | EPR insulated PO inner sheathed tinned copper wire braided armor PO(SHF1) outer sheathed offshore oil platform power cable |
| CEP96/SC | EPR insulated PO inner sheathed galvanized steel wire braided armor PO(SHF1) outer sheathed offshore oil platform power cable |
| CJP86/SC | XLPE insulated PO inner sheathed tinned copper wire braided armor PO(SHF1) outer sheathed offshore oil platform power cable |
| CJP96/SC | XLPE insulated PO inner sheathed galvanized steel wire braided armor PO(SHF1) outer sheathed offshore oil platform power cable |
| CEPJ85/SC | EPR insulated XLPO inner sheathed tinned copper wire braided armor XLPO(SHF2) outer sheathed offshore oil platform power cable |
| CEPJ95/SC | EPR insulated XLPO inner sheathed galvanized steel wire braided armor XLPO(SHF2) outer sheathed offshore oil platform power cable |
| CJPJ85/SC | XLPE insulated XLPO inner sheathed tinned copper wire braided armor XLPO(SHF2) outer sheathed offshore oil platform power cable |
| CJPJ95/SC | XLPE insulated XLPO inner sheathed galvanized steel wire braided armor XLPO(SHF2) outer sheathed offshore oil platform power cable |
Type comparison：
| Type for oil platform | Type of our company |
|---|---|
| HOFR | CJP86/SC；CJP96/SC；CJPJ85/SC；CJPJ95/SC；CEP86/SC；CEP96/SC；CEPJ85/SC；CEPJ95/SC |
