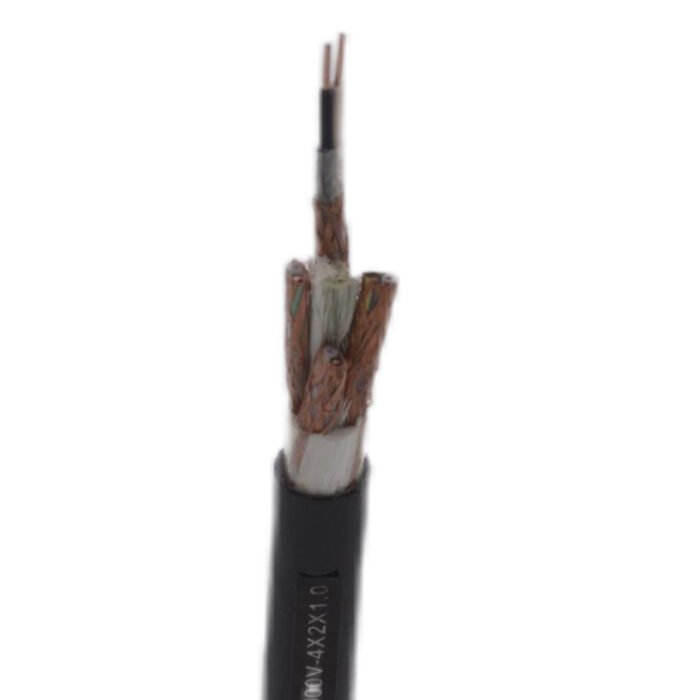

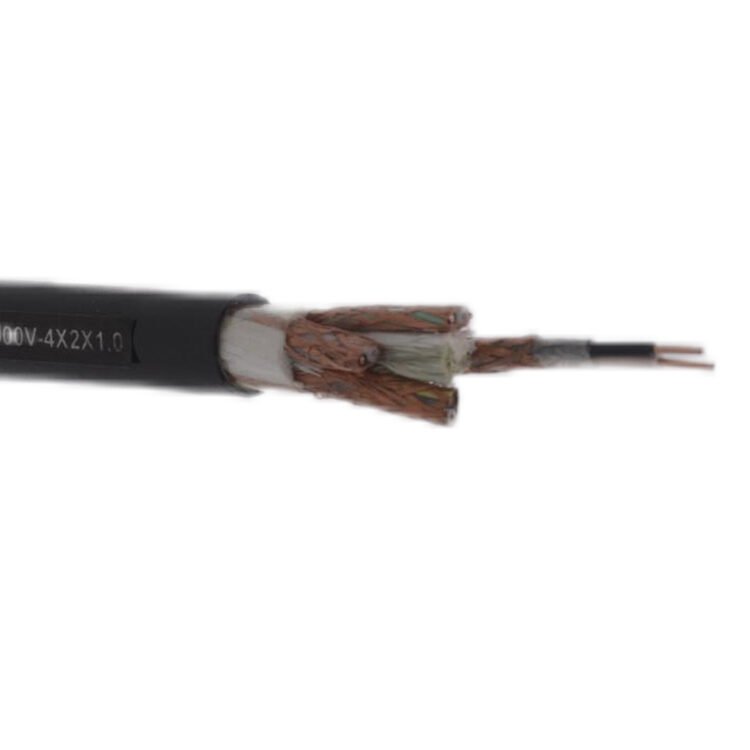

PE or XLPE insulated PVC sheathed shielded computer cable

PE or XLPE insulated PVC sheathed shielded computer cable 300/500V for signal transmission in computer system, monitoring circuit, etc.

This product applies for PE or XLPE insulated computer cable with rated voltage up to and including 300/500V, used for signal transmission in computer system, montoring circuit, automatic control system, and connection with testing equipments and instruments.

Q/WHY09

1. The rated voltage U0/U of the cable should be 300/500V.
2. Maximum long-term allowed operating temperature of cable conductor: should be 70℃ for PE insulation, should be 90℃ for XLPE insulation, Cable laying temperature should be not less than 0℃.
3. Allowed bending radius of non armored or braided shielded cable should be not less than 6 times outer diameter of the cable, of armored or copper tape shielded cable should be not less than 12 times outer diameter of the cable; of shielded flexible cable should benot less than 6 times outer diameter of the cable.

Note: The type not listed in the table should be comprised according to following type explanation.

1. Conductor D.C. resistance at 20℃ complies with stipulations of GB/T 3956.
2. Insulation resistance at 20℃ should be not less than 3000MΩ.km.
3. Cable withstand 1 .0kV for 1 minutes without puncture.
