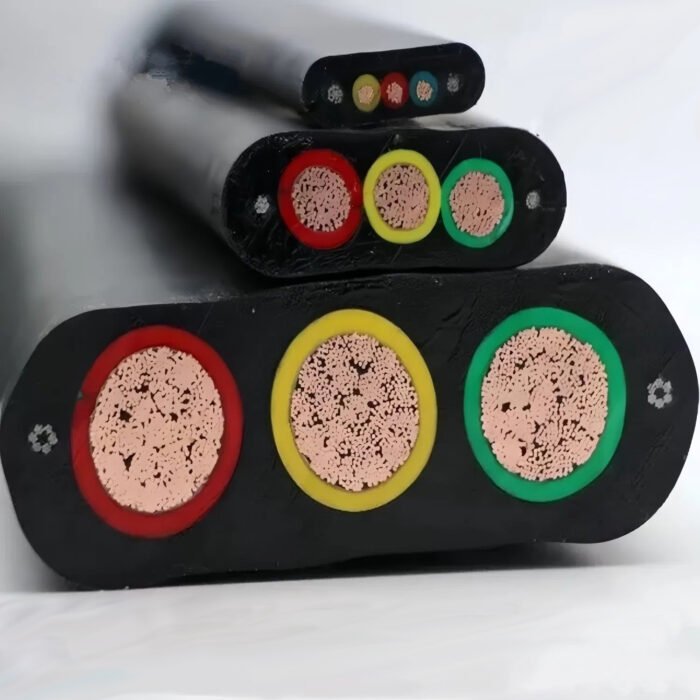

NBR Insulated Flat Cable Up to and including to 0.6/1kV

Application

The cable is soft and oilproof and can endure theextremecold and wear, It is applicable to the movableequipment (0.6k Vor lower)eg. palet car, delivery machine, as the power supplycable or control lighting and communication cable. It has found itsuses in metal refning electrical ship or port industries.
Phase-shielded NBR fat cable is applicable to the frequency converter as the power cable.

Manufacturing standard

Q/WHY10

Service characteristics

1. The rated voltage UyU of the cable should be 450/750V,0.6/1kV
2. Allowed maximum operating temperature of cable conductor should be 70℃.
3. Allowed maximum short circuit temperature (lasting 5 seconds) should be 160℃.
4. Minimum bending radius should be 6 times ofcable outer diameter.

Type and Description

Type	Description
YVFB	Copper core NBR insulated NBR sheathed movable fexible flat cable
YVFGB	Copper core NBR insulated silicon rubber sheathed movable flexible flat cable
YVFSB	Copper core NBR insulated thermoplastic elastomer sheathed movable flexible flat cable
YVFPB	Copper core NBR insulated copper wire braided shielded NBR sheathed movable flexible flat cable
YVFGPB	Copper core NBR insulated copper wire braided shielded stlicon rubber sheathed movable fiexible fat cable
YVFSPB	Copper core NBR silicon rubber insulated copper wire braided shielded thermoplastic elastomer sheathed movable flexible flat cable

Main technical index

1. Conductor D.C, resistance at 20℃ complies with stipulations of GB/T3956
2,Insulation resistance at 20℃ shouldbe not less than 500MΩ .km.
3. Cable withstand A.C.3.5kV test for 5 minutes without puncture.
