Overview
XTP series anti-wave cover is suitable for electrical devices and electronic equipment or components to prevent wave interference, shielding role and design.

Execution standard
Q/XTHY 06-2022 Metal braided sleeve

Characteristics

●Conductor Type
Copper conductor braid: mainly used in general no humidity, no high temperature, no oxidation and other environmental sites;
Tinned copper conductor braid: mainly used in humidity, easy oxidation, easy to corrosion and other environmental sites;
Silver-plated copper conductor braid: mainly used in the requirements of the conductor resistance is small, the transmission of signals, reliable, accurate performance of electronic instruments, meters;
Nickel-plated copper conductor braid: mainly used in the corrosion-resistant, resistant, resistant to heat, resistant to oxidation of the environment. Oxidation-resistant environment.

●Sheath type
Sheathless type: mainly used in general places where no protection is required;
Sheathed type: protects the braided conductor. There are two types of sheathing structures,
one for normal environment and the other for special environment: for normal environment, the braided conductor is protected by the sheathing material suitable for normal environment;
for special environment, the braided conductor is protected by the sheathing material suitable for special environment.

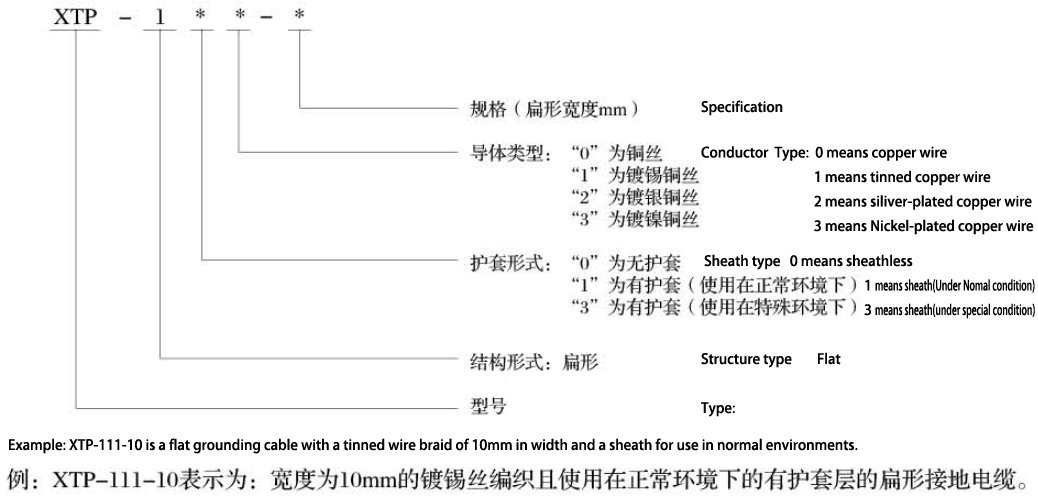

Model Specification Indication Method

Type & Specification

Product structure size, weight
……omit,
for more information,pls contact us

20℃ Conductor DC Resistance Ω/m

Braided Density
Flat braiding density not less than 95%.

DeliveryLength
The length of the coil or Drum is 100 meters or its multiple:
when required by the user, the delivery shall be in any length required by the user;
short segments of no less than 5 meters are allowed for delivery, but the number of short segments shall not exceed 20% of the total delivery.
