Metal Braid Series A: XTP Series EMl Shielding Sleeve

Metal Braid Series A: XTP Series EMl Shielding Sleeve

XTP series anti-wave cover is suitable for electrical devices and electronic equipment or components to prevent wave interference, shielding role and design.

Q/XTHY 06-2022 Metal braided sleeve

Copper conductor braid: mainly used in general no humidity, no high temperature, no oxidation and other environmental sites;
Tinned copper conductor braid: mainly used in humidity, easy oxidation, easy to corrosion and other environmental sites;
Silver-plated copper conductor braid: mainly used in the requirements of the conductor resistance is small, the transmission of signals, reliable, accurate performance of electronic instruments, meters;
Nickel-plated copper conductor braid: mainly used in the corrosion-resistant, resistant, resistant to heat, resistant to oxidation of the environment. Oxidation-resistant environment.

Sheathless type: mainly used in general places where no protection is required;
Sheathed type: protects the braided conductor. There are two types of sheathing structures,
one for normal environment and the other for special environment: for normal environment, the braided conductor is protected by the sheathing material suitable for normal environment;
for special environment, the braided conductor is protected by the sheathing material suitable for special environment.

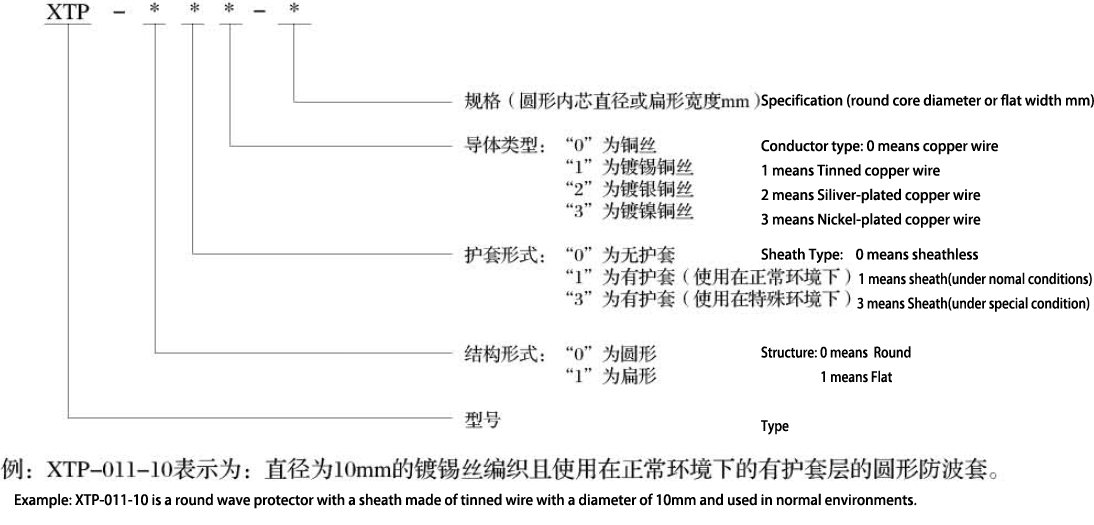

Circular structure		Flat structure
XTP-0**-3.0	XTP-0**-12.5	XTP-1**-4.0	XTP-1**-13.0
XTP-0**-4.0	XTP-0**-15.0	XTP-1**-5.0	XTP-1**-15.0
XTP-0**-5.0	XTP-0**-20.0	XTP-1**-6.0	XTP-1**-18.0
XTP-0**-6.0	XTP-0**-25.0	XTP-1**-7.5	XTP-1**-20.0
XTP-0**-7.5	XTP-0**-30.0	XTP-1**-8.0	XTP-1**-22.0
XTP-0**-10.0	—	XTP-1**-10.0	—

……omit,
for more information,pls contact us

Round Briading density not less than 93%, flat braiding density not less than 95%.

The length of the coil or Drum is 100 meters or its multiple:
when required by the user, the delivery shall be in any length required by the user;
short segments of no less than 5 meters are allowed for delivery, but the number of short segments shall not exceed 20% of the total delivery.
