Low voltage reeling cable 0.6/1kV
Low voltage reeling cable 0.6/1kV is intended for port, dock movable facilities such as fast movable cranes for container, hoisting equipment, mining, etc.
Application:
Low voltage reeling cable 0.6/1kV is intended for port, dock movable facilities such as fast movable cranes for container, hoisting equipment, movable large facilities, grab dredgers, mining on the ground/well bottoms and the site with high machinery stress.
Marking:
Insulated core shall identified by color or figure and comply with the stipulations of Q/WHY 55-2013.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage rating, etc.
Service Property Parameter：
| Main Parameter | Performance Index |
|---|---|
| Rated Voltage | 0.6/1kV |
| Max Operating Temperature | 90℃ |
| Min Bending Radius | ≥6D (D: cable diameter, mm) |
| A.C. Voltage Test | 3.5kV/5min without puncture |
Executive Standard：
| Design | Q/WHY 55 |
| Flame Retardant | GB/T19666 |
Type & Description：
| Type | Description |
|---|---|

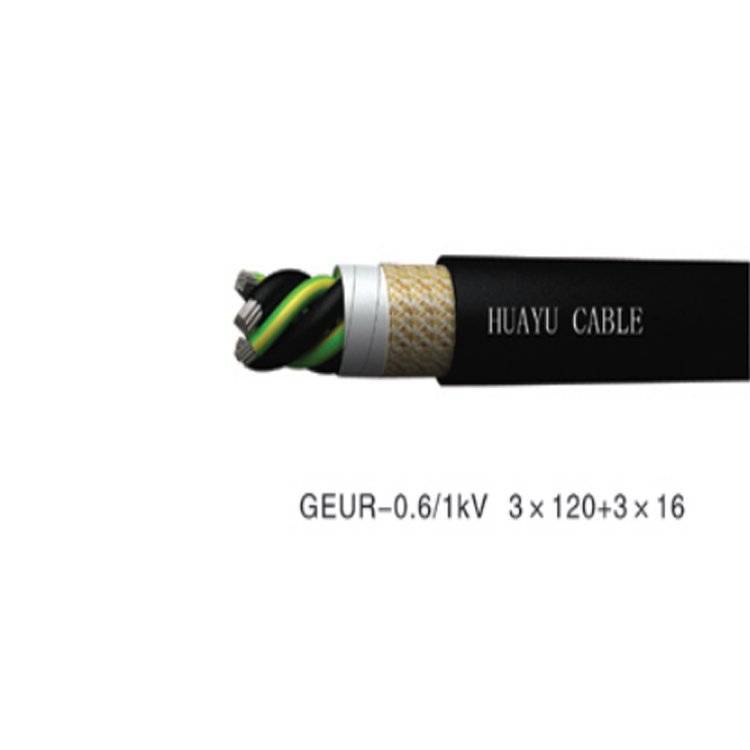

| GEUR-0.6/1 | EPR insulated PUR inner sheathed kevlar braided reinforcement PUR outer sheathed port machinery cable |
| GEFR-0.6/1 | EPR insulated PCP inner sheathed kevlar braided reinforcement PCP outer sheathed port machinery cable |
Cable Specification：
| Type | Specification |
|---|---|
| GEUR-0.6/1 | 3×25 + 3×6 ~ 3×240 + 3×50 |
| GEFR-0.6/1 | 3×25 + 3×6 ~ 3×240 + 3×50 |
Note: The specification can be customized as per customer required.
