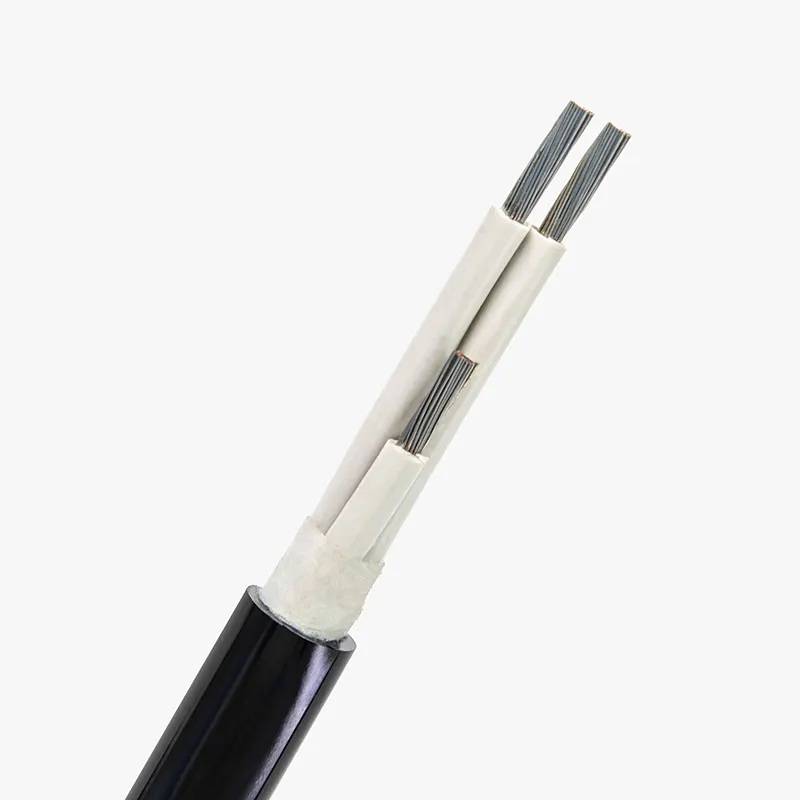

Low smoke shore connection cable for naval ships

Low smoke shore connection cable for naval ships

Application

The cable is intended for shore power connection when anchoring. The structure and material of cable comply with GJB1916 and MIL-DTL24643/3C, vulcanizing cross-linked polyethylene is used for the sheath, the cables have better properiesof low temperature and flexibility, and flame-retardant,low smoke, halogen-free, low toxicity and good electrical performance
etc.

 Executive standard
GJB1916
MIL-DTL-24642/3C
IEC 60092-353
IEC 60092-351
IEC 60092-359
IEC 60332-3-22
IEC 60754
IEC 61034

Marking

Insulated core shall identified by figure,The sheath color is black and printed with manufacturename, manufacturing year ,manuiacture year, type,specifications, voltage andlength etc.

Service propertyparameter

Main parameter                                                                                Performance index
Rated voltage                                                                                            0.6/1(1.2)kV
long time permissible maximum operating temperature                90℃
The  cable can endure low temperature bending test.
the conductor resistance of cable at 20℃ ,comply with the stipulations of GJB1916.
Cable minimum bending radius
Single-core Cable                                                                                 ≥6D(D:Cable Diameter，mm
Three-core Cable                                                                                 ≥6D(D:cable diameter.mm)

Main technical parameter

Note:
①The data above only for reference and to be confirmed by our technical department if you use,we reserve the right to alter any information without notice.
② We can supply PcP sheathed shore connection cable if user needs. The type is JEFR/SA-A, the parameter coincide with JEPJR/SC-A
