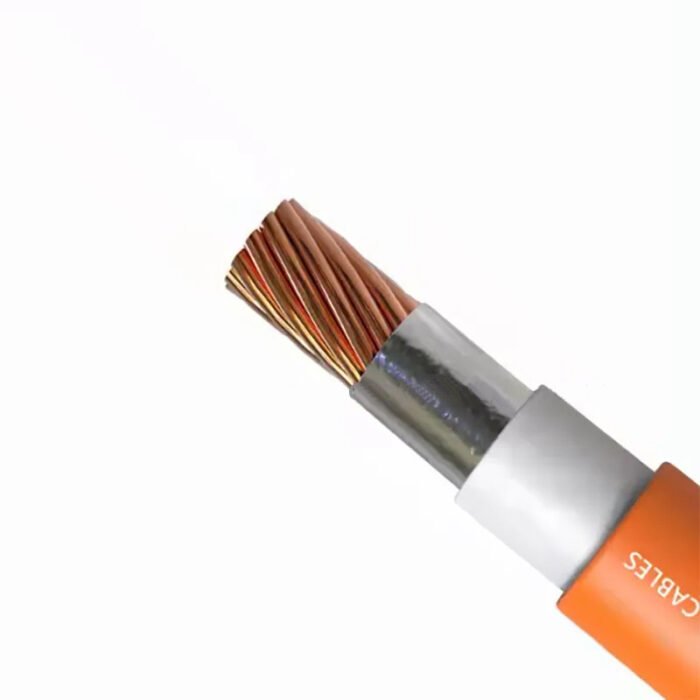

High Temperature Resistant Fireproof Cable

Application

Applicable to electrical connection or power transmission of power generating,metallurgical and other high temperature,fireproof,anti-corrosive ,etc., severe environment

Manufacturing standard

Q/HY12

Service characteristics

1.Rated voltage:1kV or lower at 50HZ,Max working temperature(two kinds)-40-500℃;-40-800℃
2.fireproof characteristics.flaming temperature:950-1000℃
Flaming time:90min.
Under added rated voltage:3A without blowout of fuse

Type and Description

Type	Description
AFHBR	Fluoroplatics insulated heat-resistent Fire-proof Flexible cable

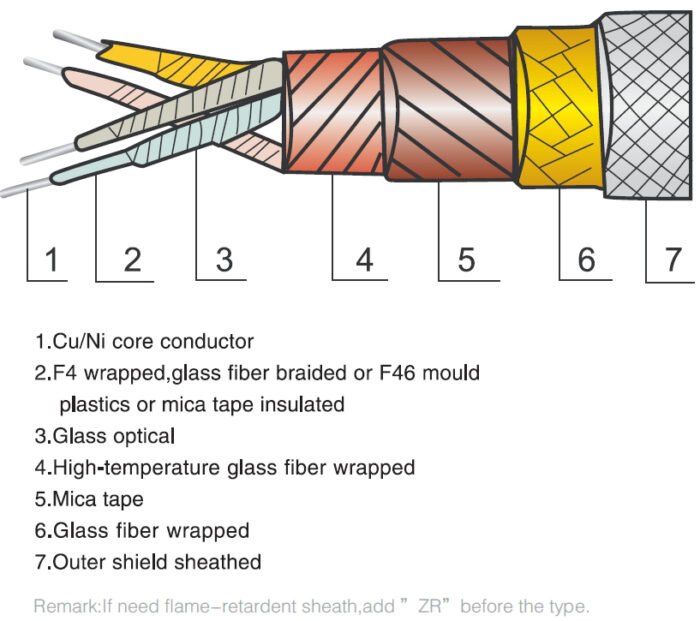

AFHBRP	Fluoroplatics insulated heat-resistent Fire-proof Flexible Shielded cable
ABHBR	PTFE insulated heat-resistent Fire-proof Flexible cable
ABHBRP	PTFE insulated heat-resistent Fire-proof Flexible Shielded cable

Note :“ZR” should be added before flame retardant cable Type,”22″ should be added behind of steel tape armoured cable Type

Main technical Index

Item	Unit	Index
DC resistant at 20℃	Ω/km	Ω.km
Test voltage	km/min	3.5/5
Insulation resistance	Ω.km	500
Combustion Characteristic	–	GB/T19666-2019
