Fluoroplastics insulated and sheathed copper wire braided computer cable

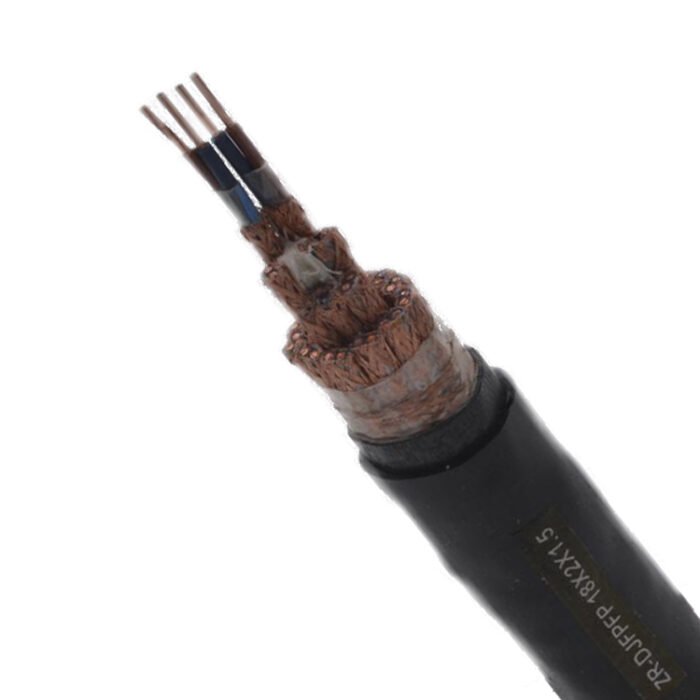

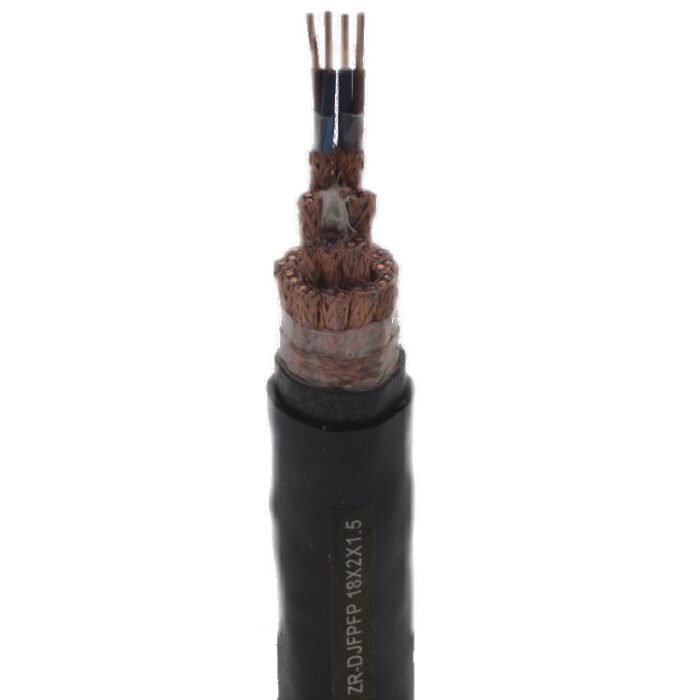

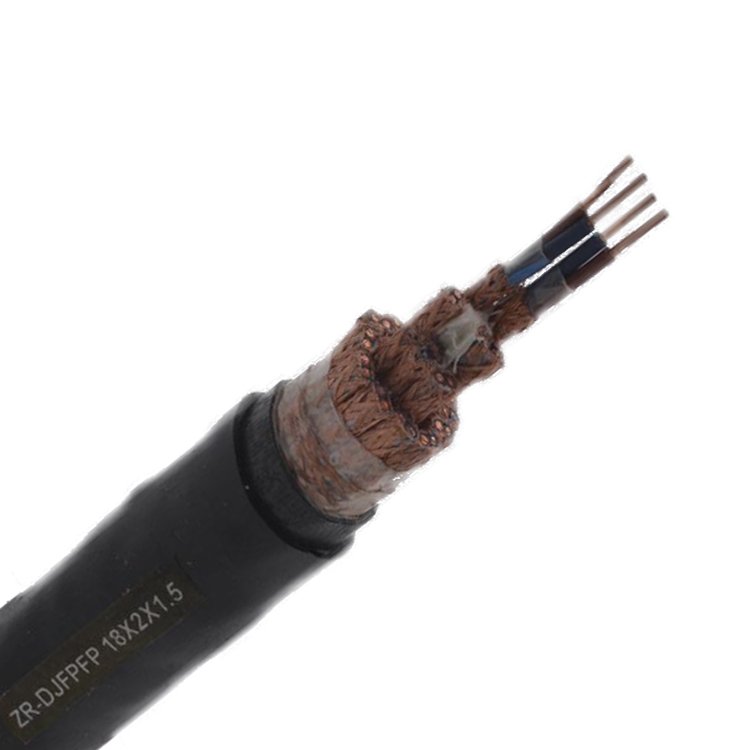

Fluoroplastics F46 insulated and sheathed copper wire braided individual and overall shielded computer cable Q/WHY 09 300/500V

Application

This product applies for FEP insulated computer cable with rated voltage up to and including 300/500V, used for signal transmission in computer system, montoring circuit, automatic control system, and cormection with testing equpments and instruments.

Executive Standard

Q/WHY09

Service Property

1. The rated voltage U0/U of the cable should be 300/500V.
2. Maximum long-term allowed operating temperature of cable conductor should be 200℃; Cable laying ambient temperature of PVC sheath should be 0℃, of fluorine plastic and silicone rubber sheath should be not less than -15℃.
3. Allowed bending radius of non armored or braided shielded cable should be not less than 6 times outer diameter of the cable, of armored or copper tape shielded cable should be not less than 12 times outer diameter of the cable, of shielded fexible cable should benot less than 6 times outer diameter of the cable.

Type & Description

Note : The type not listed in the table should be comprised according to following type explanation.

Code & Meaning

Main technical index

1. Conductor D.C. resistance at 20℃ complies with stipulations of GB/T 3956.
2. Insulation resistance at 20℃ should be not less than 500MΩ.km.
3. Cable withstand 1 .0kV for 1 minutes without puncture.

Cable specification and structural parameter
