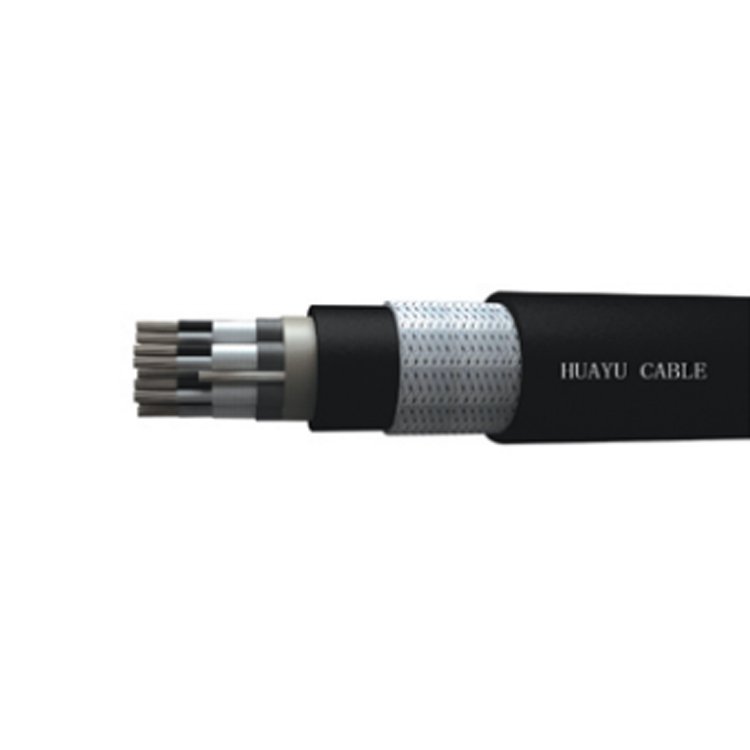

Fire-resistant Telecommunication cable for offshore oil platform 150/250V is for signal transmission and control system of ships, offshore oil, etc.
Application
Fire-resistant Telecommunication cable for offshore oil platform 150/250V is intended for signal transmission and control system of ships, offshore oil platform telecom, computer and information processing equipment which isrequested fire-resistant.
Marking
Insulated core shall identified by color or figure and comply with the stipulations of GB/T6995.4-2008.
The sheath color is black and printed with manufactures, name, type, specifications, voltage grade, length, date of manufacture and combustion characteristic code.
Service Property Parameter
| Main Parameter |
Performance Index |
| Rated Voltage |
150/250V |
| Max Operating Temperature |
90℃ |
| Minimum Bending Radius |
≥6D (D: cable diameter, mm) |
| A.C. Voltage Test |
1.5kV/5min without puncture |
Executive Standard
| Design |
IEC 60092-376 |
| Conductor |
IEC 60228 |
| Insulation |
IEC 60092-351 |
| Sheath |
IEC 60092-359 |
| Flame Retardant |
IEC 60332-3-22 |
| Fire-Resistant |
IEC 60331 |
| Halogen Free |
IEC 60754 |
| Low Smoke |
IEC 61034 |
Type & Description
| Type |
Description |
| CHEPPZP96/NSC |
EPR insulated individual shielded and collective shielded PO inner sheathed galvanized steel wire braided armor PO(SHF1) outer sheathed offshore oil platform fire-resistant telecommunication cable |
| CHEPZP96/NSC |
EPR insulated collective shielded PO inner sheathed galvanized steel wire braided armor PO(SHF1) outer sheathed offshore oil platform fire-resistant telecommunication cable |
| CHJPPZP96/NSC |
XLPE insulated individual shielded and collective shielded PO inner sheathed galvanized steel wire braided armor PO(SHF1) outer sheathed offshore oil platform fire-resistant telecommunication cable |
| CHJPZP96/NSC |
XLPE insulated collective shielded PO inner sheathed galvanized steel wire braided armor PO(SHF1) outer sheathed offshore oil platform fire-resistant telecommunication cable |
| CHEPJPZP95/NSC |
EPR insulated individual shielded and collective shielded XLPO inner sheathed galvanized steel wire braided armor XLPO(SHF2) outer sheathed offshore oil platlorm fire-resistant telecommunication cable |
| CHEPJZP95/NSC |
EPR insulatec collective shielded XLPO inner sheathed galvanized steel wire braided armor XLPO(SHF2) outer sheathed ofishore oil platform fire-resistant telecommunication cable |
| CHJPJPZP95/NSC |
XLPE insulated individual shielded and collective shielded XLPO inner sheathed galvanized steel wire braidedarmor XLPO(SHF2) outer sheathed offshore oil platlorm fire-resistant telecommunication cable |
| CHJPJZP95/NSC |
XLPE insulated colective shielded XLPO inner sheathed galvanized steel wire braided armor XLPO(SHF2) outer sheathed offshore oil platform fire-resistant telecommunication cable |
| CHEPPZP86/NSC |
EPR insulated individual shielded and collective shielded PO inner sheathed tinned copper wire braided armor PO(SHF1) outer sheathed offshore oil platform fire-resistant telecommunication cable |
| CHEPZP86/NSC |
EPR insulated collective shielded PO inner sheathed tinned copper wire braided armor PO(SHF1) outer sheathed offshore oil platform fire-resistant telecommunication cable |
| CHJPPZP86/NSC |
XLPE insulated individual shielded and colective shieicded PO inner sheathed tinned copper wire braided armor PO(SHF1) outer sheathed offshore oil platform fire-resistant telecommunication cable |
| CHJPZP86/NSC |
XLPE insulated collective shielded PO inner sheathed tinned copper wire braided armor PO(SHF1) outer sheathedoffshore oil platform fire-resistant telecommunication cable |
| CHEPJPZP85/NSC |
EPR insulated individual shielded and collective shielded XLPO inner sheathed tinned copper wire braided armor XLPO(SHF2) outer sheathed offshore oil platform fire-resistant telecommunication cable |
| CHEPJZP85/NSC |
EPR insulated collective shielded XLPO inner sheathed tinned copper wire braided armor XLPO(SHF2) outer sheathed offshore oil platform fire-resistant telecommunication cable |
| CHJPJPZP85/NSC |
XLPE insulated individual shielded and collective shielded XLPO inner sheathed tinned copper wire braided armor XLPO(SHF2) outer sheathed offshore oil platform fire-resistant telecommunication cable |
| CHJPJZP85/NSC |
XLPE insulated collective shielded XLPO inner sheathed tinned copper wire braided armor XLPO(SHF2) outer sheathed offshore oil platform fire-resistant telecommunication cable |
Type comparison
| Type for oil platform |
Specification |
Type of our company |
| FS |
(Number of Wire Groups P) x Nominal Cross Section；(Number of Wire Groups T) x Nominal Cross Section |
CHEPZP96/NSC、CHEPJZP95/NSC、CHJPZP86/NSC、CHJPJZP85/NSC、CHJPZP96/NSC、CHJPJZP95/NSC、CHJPZP86/NSC、CHJPJZP85/NSC |
| (Number of Wire Groups PR) x Nominal Cross Section；(Number of Wire Groups TR) x Nominal Cross Section |
CHEPPZP96/NSC、CHEPJPZP95/NSC、CHEPPZP86/NSC、CHEPJPZP85/NSC、CHJPPZP96/NSC、CHJPJPZP95/NSC、CHJPPZP86/NSC、CHJPJPZP85/NSC |
