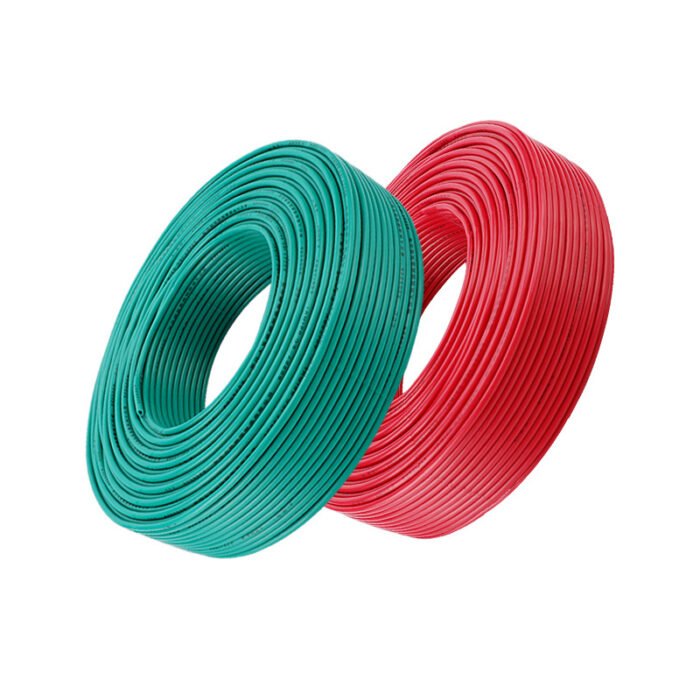

Field-Use XTRT Series Special Flexible Power Cable

Overview

XTRT series of special soft power cables are divided into power cable and control power cable, power cable is suitable for power transmission; control power cable is suitable for instrumentation and control of electrical equipment.
The product adopts oil-resistant elastomer material as insulation, special soft elastomer material as sheath, with excellent electrical performance, anti-aging, low temperature resistance (-45 ℃), oil resistance, moisture resistance, mildew shade and acid and alkali erosion and other characteristics. The cable structure is soft and easy to install, and is suitable for energy and information transmission of power and electrical equipment in outdoor environment under mobile occasions.

Execution standard

O/XTHY 05-2022 Special soft power cable

Characteristics

Item	Technical requirement
Rated working voltage	450/750V and below
Cable working temperature	-45℃~+105℃
Minimum bending radius of the cable when fixed laying	4 times of the outer diameter of the cable

Model and Name

Model	Description
XTRT	Oil-resistant elastomer insulation, special elastomer sheathed special soft power cable
XTRTP	Oil-resistant elastomer insulation, tin-plated copper wire shielding, special elastomer sheathed special soft power cable
XTRT80	Oil-resistant elastomer insulation, special elastomer sheathed, tin-plated copper wire outer armored special soft power cable

Cable specification

Table 1 Power supply cable

Core No.	Nominal Cross Section mm²
1	1.5~300
2	1.5~95
3	1.5~120
4	1.5~120
3+1	2.5~120

Table 2 Control Cable

Core No.	Nominal Cross Section mm²
3,4	0.35
2~37	0.50
2~37	0.75
2~30	1.0
2~27	1.5
2~19	2.5

Main Properties

Conductor structure and conductor DC resistance are shown in Table 3

Nominal Cross Section mm²	Cable Structure n/mm	20℃ Max.Conductor Resistance Ω/KM
0.35	20/0.15	57.8
0.50	16/0.20	40.1
0.75	24/0.20	26.7
1.0	32/0.20	20.0
1.5	48/0.20	13.7
2.5	77/0.20	8.21
4.0	126/0.20	5.09
6	189/0.20	3.39
10	324/0.20	1.95
16	513/0.20	1.24
25	798/0.20	0.795
35	1121/0.20	0.565
50	1593/0.20	0.393
70	560/0.40	0.277
95	756/0.40	0.210
120	960/0.40	0.164
150	1197/0.40	0.132
185	1444/0.40	0.108
240	1960/0.40	0.0817
300	2394/0.40	0.0654

Shielded power cables: braiding density not less than 85%.
Armored power cables: braiding density not less than 85%.
Finished product voltage withstand test: withstand frequency 3000V/5min high-voltage test does not break through.
Sheath low-temperature bending test: (-55±2)℃ conditions without cracking;
Thermal shock test: (150±2)℃ conditions without cracking.
Flame retardant performance: in line with GB/T18380.12-2008 requirements

Product structure size, weight

……omit,
for more information,pls contact us
