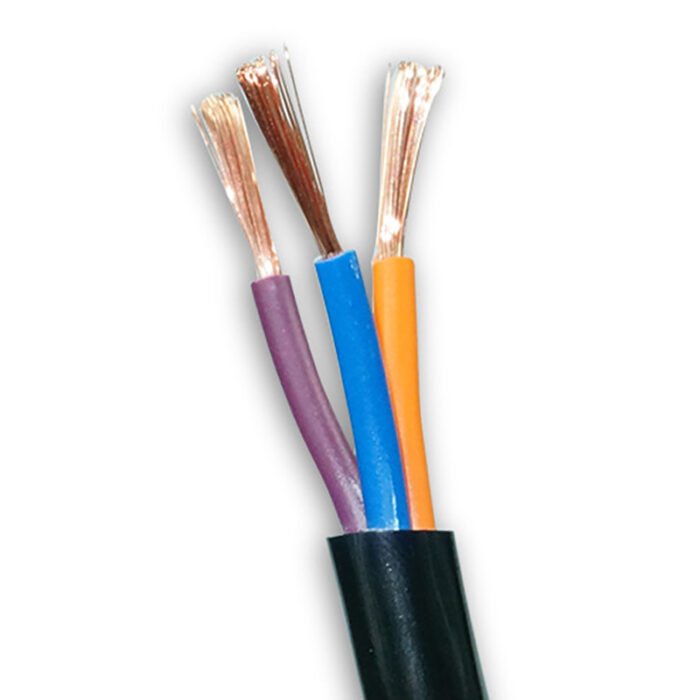

Field-Use Special Control Cable

Overview

This product adopt fluoroplastic insulation and thermoplastic elastomer sheath, which has the properties of low temperature resistance, aging resistance, flame retardant, three-proof, etc., and has the characteristics of anti-interference, stable electrical performance, compact structure, soft, easy installation and so on. It is suitable for the connection of electrical control systems in the field environment.

Execution standard

Q/XTHY 09-2022 Field-Use Special Control Cable

Characteristics

Item	Technical requirement
Rated working voltage	450/750V and below
Cable working temperature	JFT Series -55℃~+105℃	JFY Series -55℃~+85℃
Minimum bending radius of the cable when fixed laying	6 times of the outer diameter of the cable

Model and Name

Model	Description
JFT	Fluoroplastic insulated, special flexible TPE elastomer sheathed control cable
JFU	Fluoroplastic insulated, special wear-resistant TPU elastomer sheathed control cable
JFTP	Fluoroplastic insulation, tin-plated copper wire shielding, special flexible TPE elastomer sheath control cable
JFUP	Fluoroplastic insulation, tin-plated copper wire shielding, special wear-resistant TPU elastomer sheath control cable

Cable specification

Table 1 Cable Specification Range

Nominal Cross Section mm²	Cores Quantity
0.20	2~133
0.35	2~133
0.50	2~133
0.75	2~61
1.0	2~61
1.5	2~61

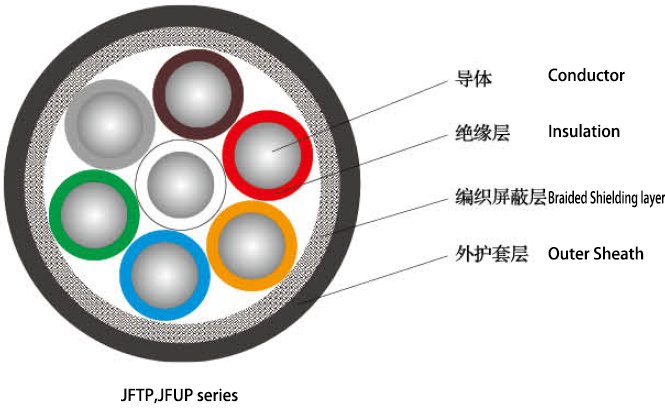

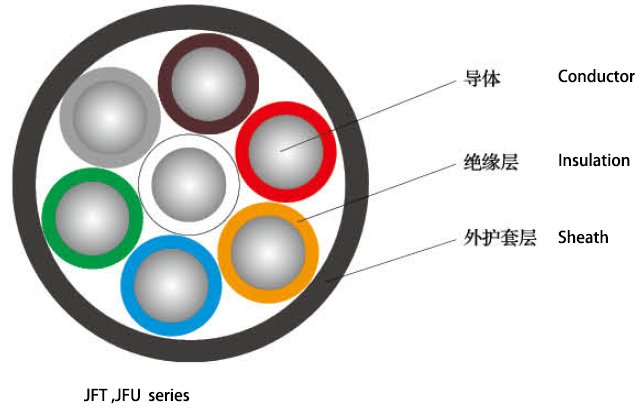

Cable Structure Diagram

Conductor Structure & DC Resistance

Nominal Cross Section mm²	Strands No./Dia. n/mm	20℃ Conductor Max. DC.Resistance Ω/km
0.20	19/0.12	93.2
0.35	19/0.16	52.3
0.50	19/0.20	33.5
0.75	19/0.23	25.4
1.0	19/0.26	19.9
1.5	19/0.23	13.1

Main Properties

Test Voltage: No breakdown under industrial frequency voltage test 3000V/5min.
Insulation resistance: not less than 1.5x10MΩ-km at 20℃.
Flame retardant performance: in line with the requirements of GB/T 18380.12-2008.

Cable Structure Parameter

……omit,
for more information,pls contact us
