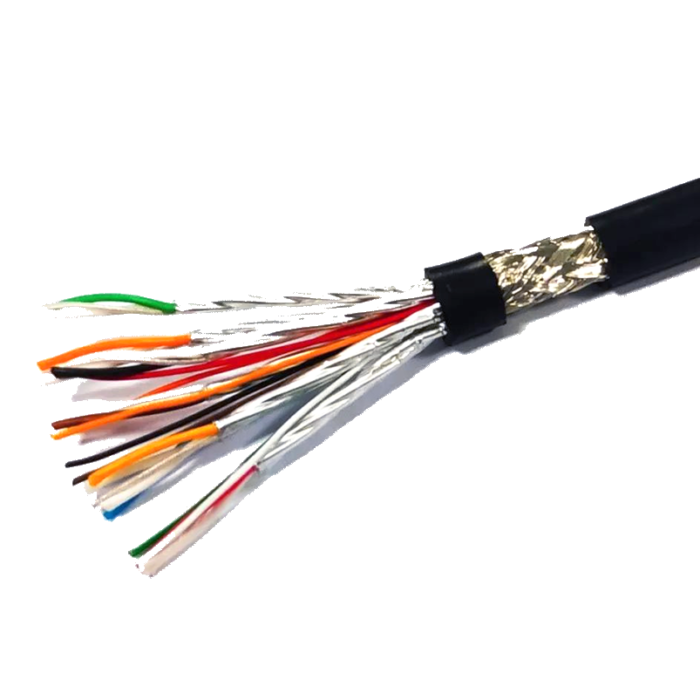

Field-Use DVl Video Transmission Cable

Field-Use DVl  Video Transmission Cable

OVERVIEW
THSFPF4x2x24A+7x24A+(2x24A)P and THSFPT7x2x24A+5x24A data transmission cables are developed on the basis of the national military standard GJB 973A-2004 General Specification for Flexible and Semi-rigid RF Cables and GJB773A-2000 Fluoropolymer Insulated Wires and Cables for Aerospace Applications, and also with reference to ANSI/EIA interface standards. The product is developed with reference to ANSI/EIA interface standard.
The product is characterized by fast transmission rate, strong anti-interference ability, superior environmental resistance, etc. It is suitable for DVI signal transmission in high-definition LCD monitors, high-definition projectors and other multimedia equipments.

Product One

Execution Standard
Single design specification

Characteristics
Rated voltage: AC, 250V and below.
Rated operating temperature:-60℃~+150℃.
Minimum bending radius: 8 times of the outer diameter of the finished cable.

Model specification and name
THSFPF 3x(28A-75)+6X24A

Main Performance
Table1,Product main performance

Sr.	Item	technical indicator
1	Conductor DC resistance (20℃)	≤93.8Ω/km
2	Insulation resistance (room temperature)	≥1000MΩ.km
3	Withstanding Voltage	Between pairs, Pair and Screen withstand 2000V/lmin without breakdown
4	Characteristic impedance (differential pair)	(100±15)Ω
5	Attenuation (differential pair)	100MHz: ≤23.6dB/10m
6	Operating Capacitance	≤56.0pF/m

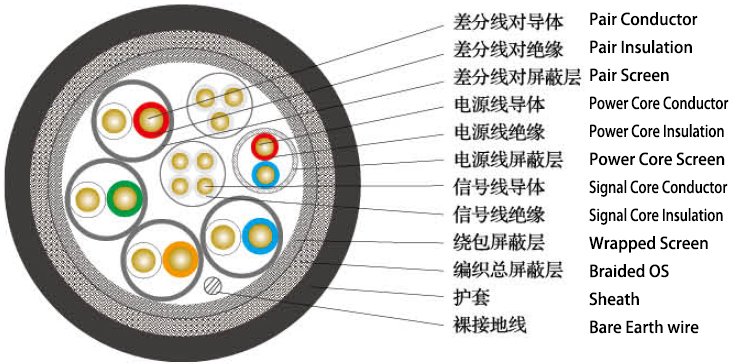

Product Structure Diagram

Product Structure Property

Sr.	Item		150/250V
1	Insulation Color	Differential Pair Conductor Power cores Signal wire	4Pairs color: White/Blue,white/Orange,white/green,white/red 2cores color: Red/Blue 7Cores color:white
2	Sheath color		Blue
3	Cable Outer Dia.		11.3mm

Product Two

Execution Standard
Single design specification

Characteristics
Rated voltage: AC, 250V and below.
Rated operating temperature:-50℃~+85℃.
Minimum bending radius: 8 times of the outer diameter of the finished cable.

Model specification and name
ZHFTP 4x2x24a+7x24a+(2x24a)P

Main Performance
Table1,Product main performance

Sr.	Item	technical indicator
1	Conductor DC resistance (20℃)	≤88.0Ω/km
2	Insulation resistance (room temperature)	≥1000MΩ.km
3	Withstanding Voltage	Between pairs, Pair and Screen withstand 2000V/lmin without breakdown(Leakage current not more than 1mA/m )
4	Characteristic impedance (differential pair)	(100±10)Ω
5	Attenuation (differential pair)	825MHz: ≤10dB/10m
6	Delay (differential pair)	≤5.5ns/10m
7	Intra-pair delay difference (differential pairs)	≤250ps/10m
8	Operating Capacitance	≤56.0pF/m

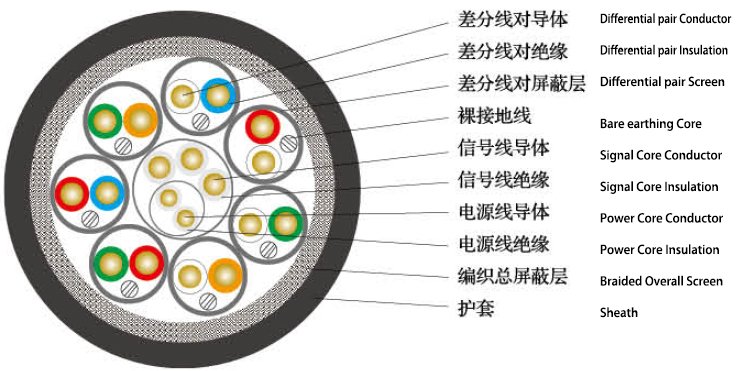

Product Structure Diagram

Product Structure Property

Sr.	Item		150/250V
1	Insulation Color	Differential Pair Conductor Power cores Signal wire	4Pairs color: White/Blue,white/Orange,white/green,white/red,Red/Blue,Green/Red,Green/Orange 2cores color: white 7Cores color:white
2	Sheath color		Black
3	Cable Outer Dia.		13mm
