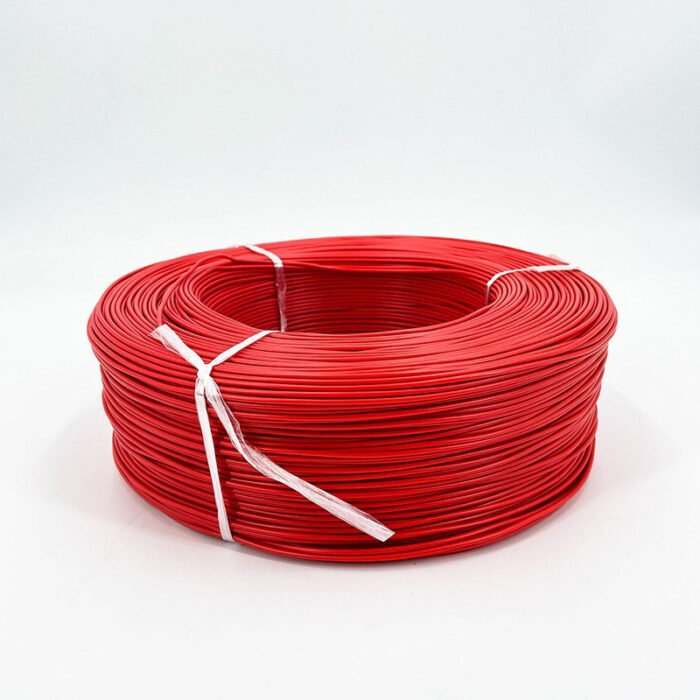

Field-Use AGTRQ Series Special Flexible Wire & Cable
Field-Use AGTRQ Series Special Flexible Wire & Cable
OVERVIEW
The product is insulated with tear-resistant silicone rubber, which has the characteristics of excellent electrical performance, anti-aging, high and low temperature resistance (-55℃~+180℃), oil resistance, moisture resistance and acid and alkali erosion resistance. The wire structure is soft, resistant, tear-resistant, and suitable for energy transmission of power and electrical equipment in special environments.
Execution standard
O/XTHY 04-2022 AGTRO Series Special Flexible Wire
Characteristics
Rated working voltage:0.6/1.0kV.
Cable working temperature:-55℃~+180℃.
Minimum bending radius of wire for fixed laying:4 times of the outer diameter of the wire.
Specification
| Sr.No. | Nominal Cross Section mm2 |
| 1 | 10 |
| 2 | 16 |
| 3 | 25 |
| 4 | 35 |
| 5 | 50 |
| 6 | 70 |
| 7 | 95 |
| 8 | 120 |
Main Performance
Conductor with tin-plated and silver-plated soft structure conductor, tin-plated conductor (-1 indicated, omitted), silver-plated conductor (-2 indicated), structure and conductor DC resistance See Table2
Table2, Cable structure and conductor DC resistance
| Nominal Cross Section n/mm |
Conductor Structure | 20℃ Max.Conductor Resistance Ω/KM |
||
| Tinned (AGTRQ) | Siliver-plated(AGTRQ-2) | Tinned | Siliver-plated | |
| 10 | 1274/0.10 | 1274/0.10 | 1.96 | 1.89 |
| 16 | 2058/0.10 | 2058/0.10 | 1.35 | 1.30 |
| 25 | 3192/0.10 | 3192/0.10 | 0.812 | 0.787 |
| 35 | 4410/0.10 | 4410/0.10 | 0.565 | 0.550 |
| 50 | 6384/0.10 | 6384/0.10 | 0.412 | 0.399 |
| 70 | 8911/0.10 | 8911/0.10 | 0.293 | 0.284 |
| 95 | 8379/0.12 | 8379/0.12 | 0.220 | 0.213 |
| 120 | 10640/0.12 | 10640/0.12 | 0.168 | 0.162 |
| Note: Tin-plated conductor, nominal cross-section 25mm2, AGTRQ type soft wire is expressed as AGTRQ25mm2 | ||||
Finished product voltage withstand test: withstand industrial frequency 3.5kV/5min high voltage test without breakdown.
Product structure size, weight
Table 3， Cable Structure Size,Weight
| Nominal Cross Section n/mm |
Max.Outer Diameter mm | Weight kg/KM |
| 10 | 11.0 | 181 |
| 16 | 13.5 | 270 |
| 25 | 15.0 | 365 |
| 35 | 16.0 | 460 |
| 50 | 18.5 | 645 |
| 70 | 21.1 | 870 |
| 95 | 24.7 | 1175 |
| 120 | 27.0 | 1526 |
