EPR insulated shipboard power cable 3.6/6kV to 18/30kV
EPR insulated shipboard power cable for rated voltage from 3.6/6kV to 18/30kV with certifications ABS, DNV GL, Lloyd’s Register, CCS, etc.
Application:
EPR insulated shipboard power cable for rated voltage from 3.6/6kV to 18/30kV is intended for general power units of shipboard and offshore oil platform.
Marking:
Insulation shall be recognized by printing figures or coloring listed in GB/T6995.5. lt is allowed, in addition, to use other methods.
ldentification of origin (manufactures' name), type,specification, rated voltage, length, etc, shall be printed on sheath.
Service Property Parameter：
| Main Parameter | Performance Index |
|---|---|
| Rated Voltage | 0.6/1kV |
| Max Operating Temperature | 90℃ |
| Minimum Bending Radius | Single-core Cable≥12D; Three-core Cable≥9D (D: cable diameter, mm) |
| A.C. Voltage Test | 3.5U0/5min without puncture |
| Partial discharge capacity under 1.73U0 test voltage | ≤10pC |
Executive Standard：
| Design | IEC 60092-354 |
| Conductor | IEC 60228 |
| Insulation | IEC 60092-351 |
| Sheath | IEC 60092-359 |
| Flame Retardant | IEC 60332-3-22 |
| Halogen Free | IEC 60754 |
| Low Smoke | IEC 61034 |
Type & Description：
| Type | Description |
|---|---|
| CEP/SC | EPR insulated thermoplastic PO sheathed shipboard power cable, SC type |
| CEP80/SC | EPR insulated thermoplastic PO inner sheathed bare tinned copper wire braided armor shipboard power cable, SC type |
| CEP90/SC | EPR insulated thermoplastic PO inner sheathed bare steel wire braided armor shipboard power cable, SC type |
| CEP86/SC | EPR insulated thermoplastic PO inner sheathed tinned copper wire braided armor thermoplastic PO outer sheathed shipboard power cable, SC type |

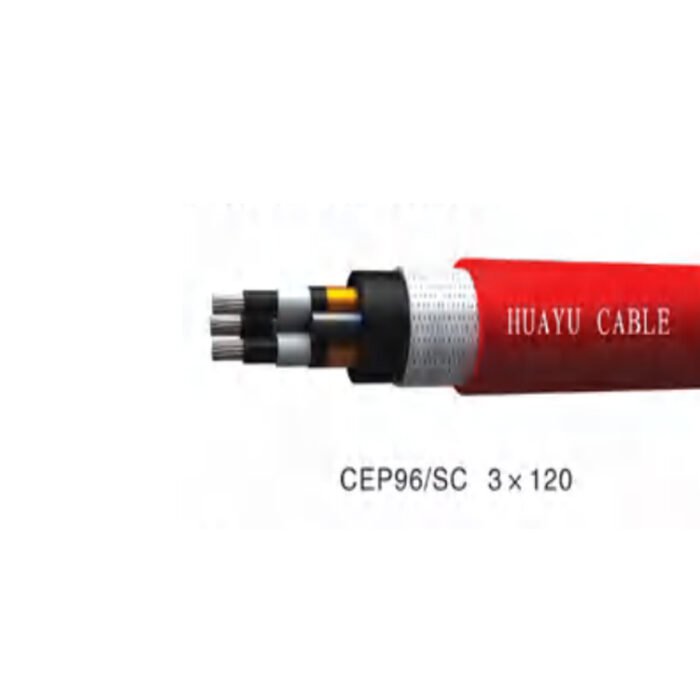

| CEP96/SC | EPR insulated thermoplastic PO inner sheathed steel wire braided armor thermoplastic PO outer sheathed shipboard power cable, SC type |
| CEPJ/SC | EPR insulated XLPO sheathed shipboard power cable, SC type |
| CEPJ80/SC | EPR insulated XLPO inner sheathed bare tinned copper wire braided armor shipboard power cable, SC type |
| CEPJ90/SC | EPR insulated XLPO inner sheathed bare steel wire braided armor shipboard power cable, SC type |
| CEPJ85/SC | XLPE insulated XLPO inner sheathed tinned copper wire braided armor XLPO outer sheathed shipboardpower cable, SC type |
| CEPJ95/SC | EPR insulated XLPO inner sheathed steel wire braided armor XLPO outer sheathed shipboard power cable, SC type |
