EPR insulated shipboard power cable 0.6/1kV
EPR insulated shipboard power cable 0.6/1kV
Application
EPR insulated shipboard power cable 0.6/1kV is intended for electric power, lighting and general control system of shipboard, oil platform and offshore building etc.
lt is also available to metallurgical industry, chemical works, power plant and mining enterprises etc.
Marking
Insulated core shall identified by color or figure and comply with the stipulations of GB/T6995.5-2008.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.
Service Property Parameter
| Main Parameter | Performance Index |
|---|---|
| Rated Voltage | 0.6/1kV |
| Max Operating Temperature | 90℃ |
| Minimum Bending Radius | ≥6D (D: cable diameter, mm) |
| A.C. Voltage Test | 3.5kV/5min without puncture |
Executive Standard
| Design | IEC 60092-353 |
| Conductor | IEC 60228 |
| Insulation | IEC 60092-351 |
| Sheath | IEC 60092-359 |
| Flame Retardant | IEC 60332-3-22 |
| Halogen Free | IEC 60754 |
| Low Smoke | IEC 61034 |

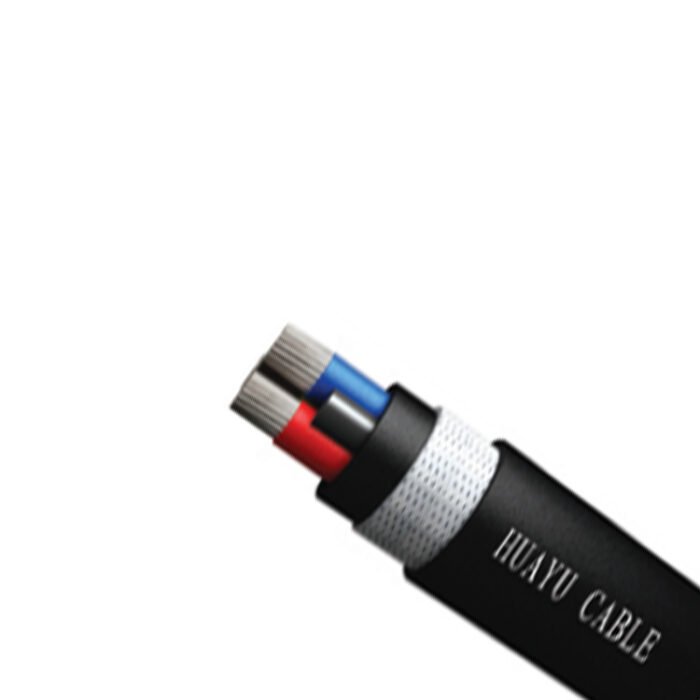

Type & Description
| Type | Description |
|---|---|
| CEF/DA or SA | EPR insulated PCP sheathed shipboard power cable, DA or SA type |
| CEH/DA or SA | EPR insulated CSP sheathed shipboard power cable, DA or SA type |
| CEV/DA or SA | EPR insulated PVC sheathed shipboard power cable, DA or SA type |
| CEFR/DA or SA | EPR insulated PCP sheathed flexible shipboard power cable, DA or SA type |
| CEHR/DA or SA | EPR insulated CSP sheathed flexible shipboard power cable, DA or SA type |
| CEVR/DA or SA | EPR insulated PVC inner sheathed tinned copper wire braided armor fire-resistant shipboard power cable, NA type |
| CEP/SC | EPR insulated PO(SHF1) sheathed low-smoke halogen-free flame-retardant shipboard power cable, SC type |
| CEPR/SC | EPR insulated PO(SHF1) sheathed low-smoke halogen-free flame-retardant flexible shipboard powercable, SC type |
| CEPJ/SC | EPR insulated XLPO(SHF2) sheathed low-smoke halogen-free flame-retardant shipboard power cables, SC type |
| CEPJR/SC | EPR insulated XLPO(SHF2) sheathed low-smoke halogen-free flame-retardant flexible shipboard powe cable, SC type |
| CEF80DA or SA | EPR insulated PCP inner sheathed tinned copper wire braided armor shipboard power cable, DA or SA type |
| CEH80DA or SA | EPR insulated CSP inner sheathed tinned copper wire braided armor shipboard power cable, DA or SA type |
| CEV80DA or SA | EPR insulated PVC inner sheathed tinned copper wire braided armor shipboard power cable, DA or SA fype |
| CEF90/DA or SA | EPR insulated PCP inner sheathed galvanized steel wire braided armor shipboard power cable, DA or SA type |
| CEH90/DA or SA | EPR insulated CSP inner sheathed galvanized steel wire braided armor shipboard power cable, DA or SA type |
| CEV90DA or SA | EPR insulated PVC inner sheathed galvanized steel wire braided armor shipboard power cable, DA or SA type |
| CEP80/SC | EPR insulated PO(SHF1) inner sheathed tinned copper wire braided armor low-smoke halogen-free flame-retardant shipboard power cable, SC type |
| CEP90/SC | EPR insulated PO(SHF 1) inner galvanized sheathed steel wire braided low-smoke halogen-free flame-retardant shipboard power cable, SC type |
| CEPJ80/SC | EPR insulated XLPO(SHF2) inner tinned sheathed copper wire braided armor low-smoke halogen-free flame-retardant shipboard power cable, SC type |
| CEPJ90/SC | EPR insulated XLPO(SHF2) inner sheathed galvanized steel wire braided armor low-smoke haloger-free flame-retardant shipboard power cable, SC type |
| CE82/DA or SA | EPR insulated tinned copper wire braided armor PVC outer sheathed shipboard power cable, DA or SA type |
| CE86/SC | EPR insulated tinned copper wire braided armor PO(SHF1) outer sheathed low-smoke halogen-free flame-retardant shipboard power cable, SC type |
| CE85/SC | EPR insulated tinned copper wire braided armor cross-linked XLPO(SHF2) outer sheathed low-smoke halogen-free flame-retardant shipboard power cable, SC type |
| CEF82/DA or SA | EPR insulated PCP inner sheathed tinned copper wire braided armor PVC outer sheathed shipboard power cable, DA or SA type |
| CEH82/DA or SA | EPR insulated CSP inner sheathed tinned copper wire braided armor PVC outer sheathed shipboard power cable, DA or SA type |
| CEV82/DA or SA | EPR insulated PvC inner sheathed tinned copper wire braided armor PVC outer sheathed shipboard power cable, DA or SA type |
| CEF92/DA or SA | EPR insulated PCP inner sheathed galvanized steel wire braided armor PVC outer sheathed shipboard power cable, DA or SA type |
| CEH92/DA or SA | EPR insulated CSP inner sheathed galvanized steel wire braided armor PVC outer sheathed shipboard power cable, DA or SA type |
| CEV92/DA or SA | EPR insulated PVC inner sheathed galvanized steel wire braided armor PVC outer sheathed shipboard power cable, DA or SA type |
| CEP86/SC | EPR insulated PO(SHF1) inner sheathed tinned copper wire braided armor PO(SHF1) outer sheathed low-smoke halogen-free flame-retardant shipboard power cable, SC type |
| CEP96/SC | EPR insulated PO(SHF1) inner sheathed galvanized steel wire braided armor PO(SHF1) outer sheathed low-smoke halogen-free flame-retardant shipboard power cable, SC type |
| CEPJ85/SC | EPR insulated XLPO(SHF2) inner sheathed tinned copper wire braided armor cross-linked XLPO(SHF2) outer sheathed low-smoke halogen-free flame-retardant shipboard power cable, SC type |
| CEPJ95/SC | EPR insulated XLPO(SHF2) inner sheathed galvanized steel wire braided armor cross-linked XLPO(SHF2) outer sheathed low-smoke halogen-free flame-retardant shipboard power cable, SC type |
RELATED PRODUCTS
GET IN TOUCH
We look forward to serving you! Our team will get back to you promptly.
