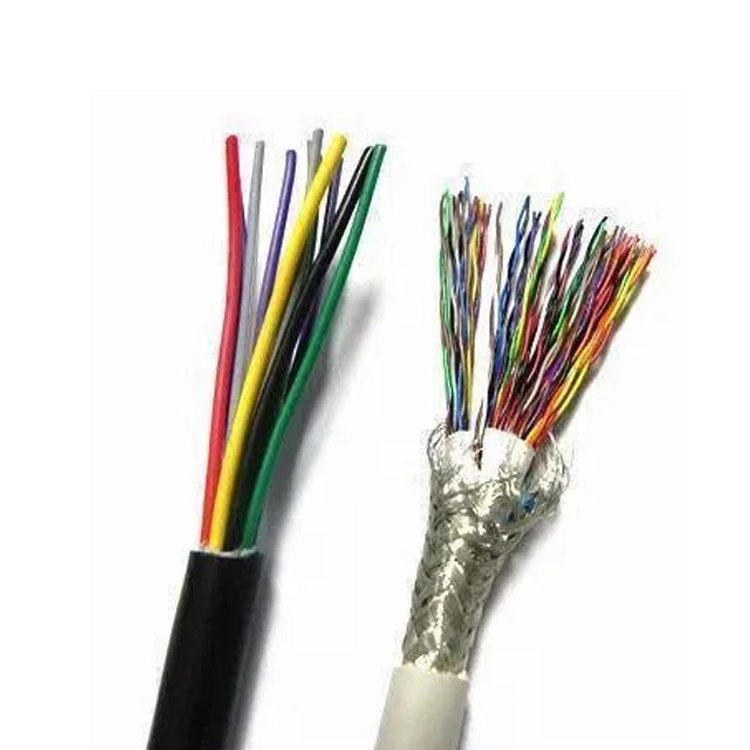

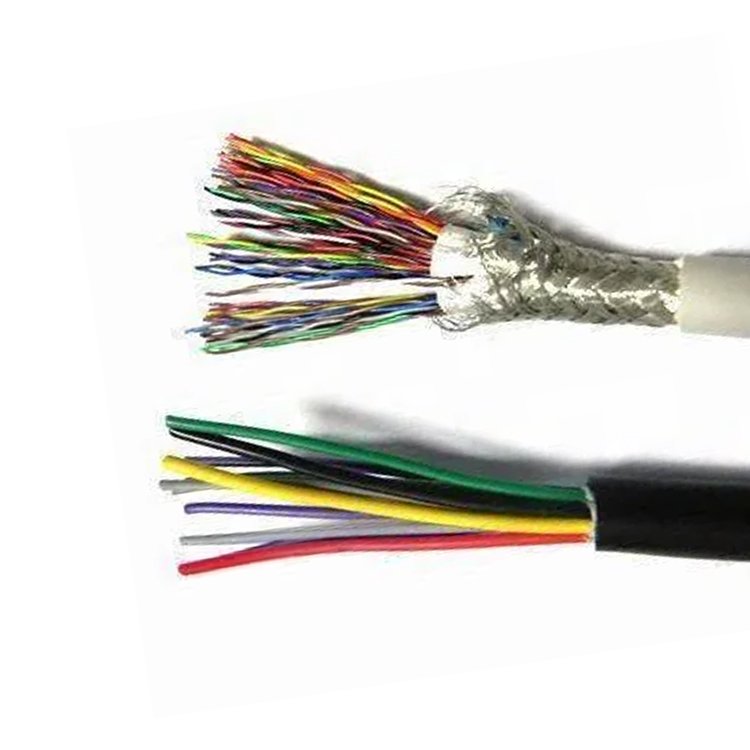

EPR Insulated Fire-Resisting Shipboard Control Cable 150/250V
EPR insulated Fire-Resisting shipboard Control cable 150/250V for electric power, lighting, general control system of shipboard, oil platform and offshore
Application:
EPR insulated Fire-Resisting shipboard Control cable 150/250V is intended for electric power, lighting and general control system of shipboard, oil platform and offshore building etc, which are requested fire-resistance.
Marking:
Insulated core shall identified by color or figure and comply with the stipulations of GB/T6995.4-2008.
The sheath color is black and printed with manufacture name, manufacture year, type, specifications, voltage and length etc.
Service Property Parameter：
| Main Parameter | Performance Index |
|---|---|
| Rated Voltage | 150/250V |
| Max Operating Temperature | 90℃ |
| Min Bending Radius | ≥6D (D: cable diameter, mm) |
| A.C. Voltage Test | 1.5kV/5min without puncture |
Executive Standard：
| Design | IEC 60092-376 |
| Conductor | IEC 60228 |
| Insulation | IEC 60092-351 |
| Sheath | IEC 60092-359 |
| Flame Retardant | IEC 60332-3-22 |
| Fire-Resistant | IEC 60331 |
| Halogen Free | IEC 60754 |
| Low Smoke | IEC 61034 |
More Products：
| Type | Description |
|---|---|
| CKEF/NA | EPR insulated PCP sheathed fire-resisting shipboard control cable, NA type |
| CKEH/NA | EPR insulated CSP sheathed fire-resisting shipboard control cable, NA type |
| CKEV/NA | EPR insulated PVC sheathed fire-resisting shipboard control cable, NA type |
| CKEP/NSC | EPR insulated PO(SHF1) sheathed low-smoke halogen-free flame-retardant fire-resisting shipboard contral cable, NSC type |
| CKEPJ/NSC | EPR insulated Cross-linked XLPO(SHF2) sheathed low-smoke halogen-free flame-retardant fire-resisting shipboard control cable, NSC type |
| CKEF80/NA | EPR insulated PCP inner sheathed tinned copper wire braided fire-resisting shipboard control cable, NA type |
| CKEH80/NA | EPR insulated CSP inner sheathed tinned copper wire braided fire-resisting shipboard control cable, NA type |
| CKEV80/NA | EPR insulated PvC inner sheathed tinned copper wire braided fire-resisting shipboard control cable, NA type |
| CKEF90/NA | EPR insulated PCP inner sheathed galvanized steel wire braided fire-resisting shipboard control cable, NA type |
| CKEH90/NA | EPR insulated CSP inner sheathed galvanized steel wire braided fire-resisting shipboard control cable, NA type |
| CKEV90/NA | EPR insulated PVC inner sheathed galvanized steel wire braided fire-resisting shipboard control cable, NA type |
| CKEP80/NSC | EPR insulated PO(SHF1) inner sheathed tinned copper wire braided low-smoke halogen-free flame-retardant fire-resisting shipboard control cable, NSC type |
| CKEP90/NSC | EPR insulated PO(SHF 1) inner sheathed aalvanized steel wire braided low-smoke halogen-free flameretardant fire-resisting shipboard control cable, NSC type |
| CKEPJ80/NSC | EPR insulated cross-linked XLPO(SHF2) inner sheathed tinned copper wire braided low-smoke halogen-free flame-retardant fire-resisting shipboard control cable, NSC type |
| CKEPJ90/NSC | EPR insulated cross-linked XLPO(SHF2) inner sheathed galvanized steel wire braided low-smokehalogen-free flame-retardant fire-resisting shipboard control cable, NSC type |
| CKE82/NA | EPR insulated tinned copper wire braided PVC outer sheathed fire-resisting shipboard control cable, NA type |
| CKE86/NSC | EPR insulated tinned copper wire braided PO(SHF1) outer sheathed low-smoke halogen-free flame-retardant fire-resisting shipboard control cable, NSC type |
| CKE85/NSC | EPR insulated tinned copper wire braided cross-inked XLPO(SHF2) outer sheathed low-smoke halogenfree flame-retardant fire-resisting shipboard control cable, NSC type |
| CKEF82/NA | EPR insulated PCP inner sheathed tinned copper wire braided PVC outer sheathed fire-resistingshipboard control cable, NA type |
| CKEH82/NA | EPR insulated CSP inner sheathed tinned copper wire braided PVC outer sheathed fire-resisting shipboard control cable, NA type |
| CKEV82/NA | EPR insulated PVC inner sheathed tinned copper wire braided PVC outer sheathed fire-resisting shipboard control cable, NA type |
| CKEF92/NA | EPR insulated PCP inner sheathed galvanized steel wire braided PVC outer sheathed fire-resistingshipboard control cable, NA type |
| CKEH92/NA | EPR insulated CSP inner sheathed galvanized steel wire braided PVC outer sheathed fire-resistingshipboard control cable, NA type |
| CKEV92/NA | EPR insulated PVC inner sheathed galvanized steel wire braided PVC outer sheathed fire-resistingshipboard control cable, NA type |
| CKEP86/NSC | EPR insulated PO(SHF1) inner sheathed tinned copper wire braided PO(SHF1) outer sheathed low-smoke halogen-free flame-retardant fire-resisting shipboard control cable, NSC type |
| CKEP96/NSC | EPR insulated PO(SHF1) inner sheathed galvanized steel wire braided PO(SHF1) outer sheathed low-smoke halogen-free flame-retardant fire-resisting shipboard control cable, NSC type |
| CKEPJ85/NSC | EPR insulated cross-linked XLPO(SHF2) inner sheathed tinned copper wire braided cross-inked XLPO(SHF2) outer sheathed low-smoke halogen--free flame-retardant fire-resisting shipboard control cable, NSC type |
| CKEPJ95/NSC | EPR insulated cross-linked XLPO(SHF2) inner sheathed galvanized steel wire braided cross -inked XLPO (SHF2) outer sheathed low-smoke halogen--free flame-retardant fire-resisting shipboard control cable, NSC type |
