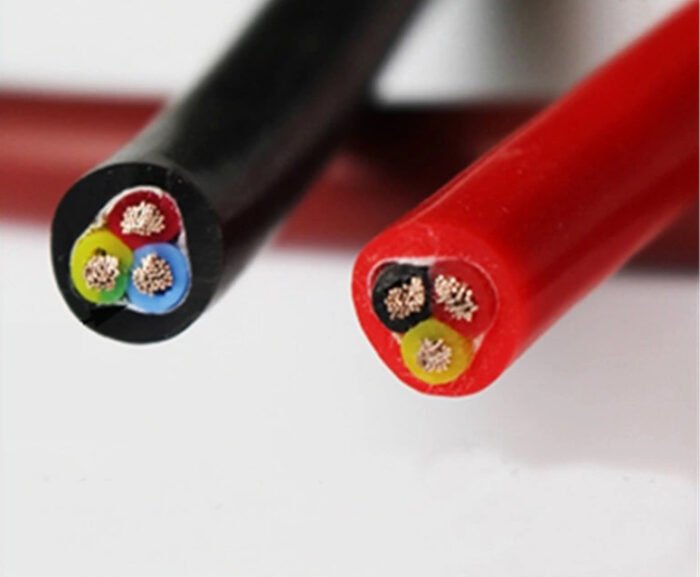

Ceramic Silicon Rubber Fire Resistant Cable

Ceramic Silicon Rubber Fire Resistant Cable

Application

Ceramics silicon rubber resistant cable is widely used in television stations, hospitals, theaters, commercial buildings, subways.tunnels, railways, airports, railway stations, large public sports, entertainment,supermarkets, hotels, high-rise buildings, military facilities.nuclear power, coal, chemical, pharmaceutical, steel, metallurgy, shipbuilding, civil and so on. Ceramic silicon rubberisa new type ofpolymer composite materials, that can fire at 750℃  x 90min ablative case, not the ashes of burnt powder, can be shaped into ceramicarmor, the formation of a layerof hard protective layer, which is the normal rubber, plastics and other polymer materials can not beachieved, and thus does not short-circuit protection circuit, open circuit.

Executive Standard

Q/WHY53

Service Property

1. Rated voltage UyU should be 0.6/1ky:
2. Maximum operating temperature of cable conductor should be 180℃
3.Conductor D.C,resistance at 20℃ should comply with GB/T3956;

4. Ambient temperature when cable laid should be not less than -25’℃, and mimimum bending radius should be not less than 10times ofthe cable outer diameter;
5.Withstand frequency voltage test 3,5kV for 5 minutes without puncture.

Type and Description

Note : The type not listed in the table should be comprised according to following type explanation.

Main technical index
1. Conductor D.C.resistance at 20℃ should comply with GB/T3956.
2. Insulation nominal thickness should meet the following table requirements.
3. Finished cable should withstand A.C. voltage 3.0kV test for 5 minutes without puneture.

Cable specification and structural parameter
