Automatic-control-temperature Heating Cable

GET A QUOTE

Automatic-control-temperature Heating Cable

Application

The automatic-control-temperature heating cable is that of a special one adjusting automatically the power accordance with thetemperature change. lt has two functions: automatic heating and automatic control temperature. The key part of the automatic control temperature heating cable, the automatic-control-temperature conductive core, is imported product, whose stability of temperature
control and time length of using is better than the same kind of product at home.

Executive Standard

Q/WHY 11

Type and description

Item Type Item Type
1 ZKWDVT-08 15 25 31 8 ZKWZFP4-14 30 47
2 ZKWDVTP1-08 15 25 31 9 ZKWZFP1F-14 30 47
3 ZKWDVTP4-08 15 25 31 10 ZKWGF-25 35 47 55 65 75
4 ZKWDVTP1VT-08 15 25 31 11 ZKWGFP1-25 35 47 55
5 ZKWDVTP1F-08 15 25 31 12 ZKWGFP4-25 35 47
6 ZKWZF-14 30 47 13 ZKWGFP1F-25 35 47 65 75
7 ZKWZFP1-14 30 47

Code & Meaning

Item Code Description
Series code ZKW Automatic-control-temperature heating cable
Temperature class D Low temperature type
Z Middle temperature type
G High temperature type
Insulation material VT Thermoplastic elastomer
E Polylefine
F Fluoropolymer
Shielding material / Without shielding,without notice
P4 Stainless steel wire braided
P1 Tinned copper wire braided
Sheath material E Polylefine
VT Thermoplastic elastomer
F Fluoropolymer
Nominal material 08 The power is 8W/m when temperature is 10℃
15 The power is 15W/m when temperature is 10℃
25 The power is 25W/m when temperature is 10℃
31 The power is 31W/m when temperature is 10℃
14 The power is 14W/m when temperature is 10℃
30 The power is 30W/m when temperature is 10℃
47 The power is 47W/m when temperature is 10℃
55 The power is 55W/m when temperature is 10℃
65 The power is 65W/m when temperature is 10℃
75 The power is 75W/m when temperature is 10℃

Code & Meaning

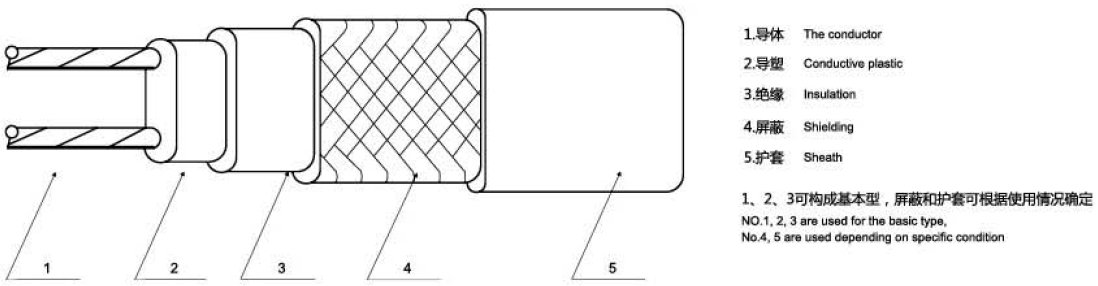

Structure Diagram
