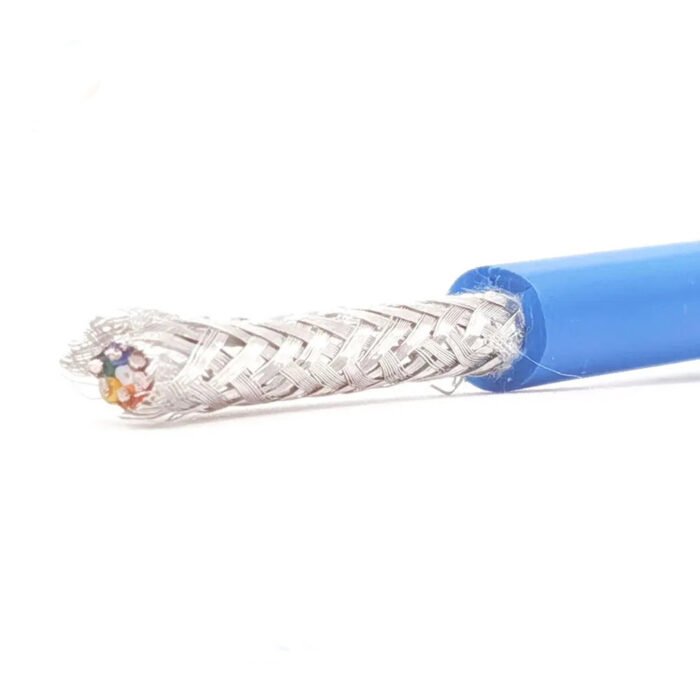

The 300/500V special explosion-proof computer cable is composed of conductor, insulation, shock-absorbing filling, ultra-high molecular weight explosion-proof material cladding, metal braid layer, explosion-proof armor layer and explosion-proof outer sheath Under the protection of shock-absorbing packing, explosion-proof wrapping, explosion-proof strengthening and explosion-proof amour ,the special explosion-proof cable can withstand the shock wave pressure of about 5MPa, At the same time, the antistatic outer sheath can effectively guide the static electricity generated by the fiction between the cable and the non-insulator, prevent the fire, explosion and other safety accidents caused by static electricity in military facilities, and perfectly solve the technical problem that the “cable electrostatic bundle” is easy to detonate, The shock-resistant outer sheath can provide limited protection against the impact damage such as shrapnel culting caused by the explosion. Special explosion-proof cables also solve the current national defense combat readiness facilities, such as oil depots, chemical storage, ammunition depots, hangars, military ports, caverns, military and civil airports, tunnels military exercise bases, large electric power, chemical, coal mines, subway hazardous terminals and other electrical equipment facilities explosion-proof system or unit power transmission security problems

GB 3936.1-2010 “Explosive atmospheres-Part 1: General requirements for equipment”
Q/WHY116 “Rated voltage 300/500V and below special explosion-proof control cable”

Oil storage, chemical storage, Ammunition depots, hangars, military ports, caverns, military and civil airports, tunnels, military exercise bases equipment lines, computer room control lines, trunk, branch distribution system lines, dual power supply control lines.
Oil platform: Power transmission, potentially dangerous explosion area line.Airport terminal: emergency lighting, fire monitoring system, fire alarm system, emergency elevator, fire telephone, emergency power supply, etc.
Military port: power room transmission lines, fre monitoring system, fre alarm system, smoke emission and ventilation lines kitchen power lines, large power lines, dual power control lines, emergency lighting, emergency broadcast lines, computer room control lines.
Chemical industry: power transsmision, general lighting, emergency lighting, potentially dangerous explosion lines and other places
Subway tunnels: power transsmision, general lighting, emergency lighting, fire monitoring systems, fire electrical lines, smoke emission and ventilation lines
lron and steel metallurgy: high temperature environment power and control system, emergency power supply, large power lines power supply lines that can not be cut of, power room transmission lines
Power plant: large power lines, general lighting, emergency lighting, fire alarm, fire electrical lines.
Aerospace: Power transmission, general lighting, emergency lighting, computer room control lines, large power lines, high temperature environment power and control lines, potentially hazardous explosion area lines.
Department store: power transsmision, general lighting, emergency lighting, emergency broadcast, emergency elevator and lifting equipment lines. Library, museum, data processing center fire alarm control lines, fire electrical lines.
Nuclear power plant: power transmission, general lighting, emergency lighting, computer room control lines, large power lines, hightemperature environment power and control systems, potentially dangerous explosion area lines.
Places of interest: power transmission, general lighting, emergency lighting, fire alarm, fire electrical lines.

Anti-explosionUnder
the protection of the explosion-proof layer, the special explosion-proof cable can withstand the shock wave pressure of about 5MPa. The anfi-static outer sheath can eiectively guide the static electricity generated by the fiction between the cable and the non.insulator, prevent the safety accidents such as fire and explosion caused by static electricity in military facilities, and the anti-shock wavouter sheath can effectively prevent the impact damage such as shrapnel cutting caused by the explosion.
Anti-electromagnetic interference
This product will not change the resistance value of the insulation material after radiation, which is the ideal distribution cable in nuclear facilities, At the same time, the cable wire braid forms a natural and optimal shielding layer, has good shielding performance and antistatic performance, and can be used in the computer room, power dispatching and control room and other places that need shielding.

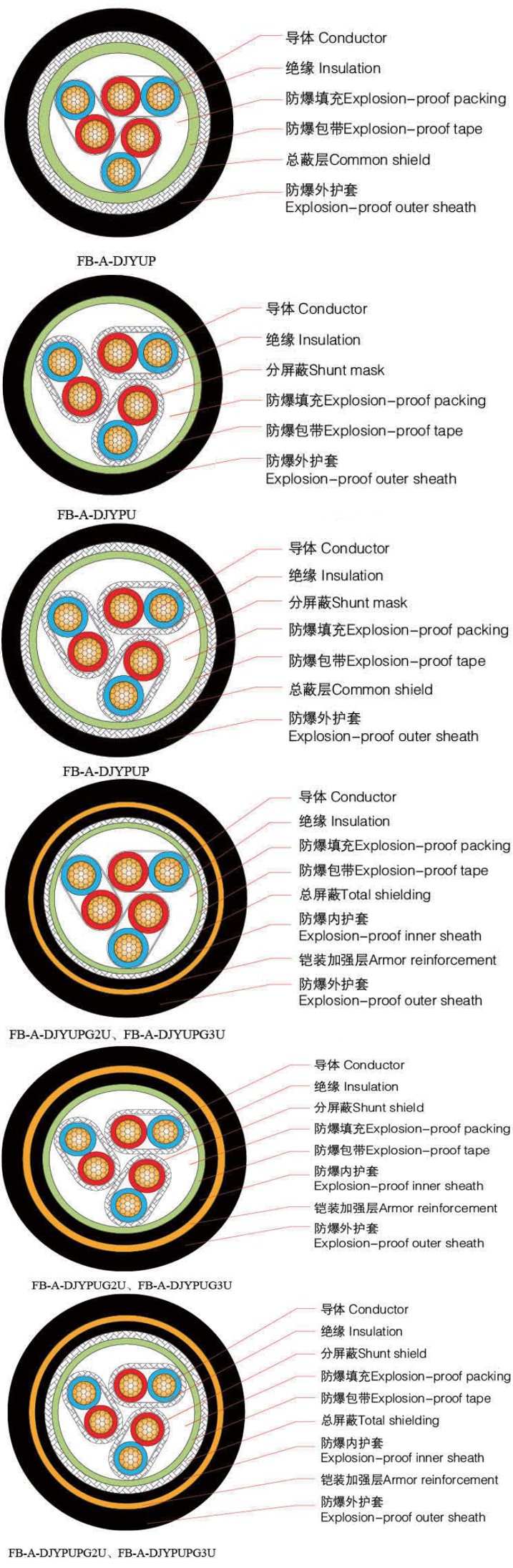

Model	Voltage grade(kV)	Product name	Core number & nominal cross section mm²
FB-A-DJYUP	300/500V	Copper core polyethylene insulated explosion-proof outer sheath wire braided total shielding Class A explosion-proof cable	1-37core: two-wire group, three-wire group, four-wire group, 0.5-2.5mm²
FB-A-DJYPU	300/500V	Copper core polyethylene insulation explosion-proof outer sheath metal braided sub-shield Class A explosion-proof cable
FB-A-DJYPUP	300/500V	Copper core polyethylene insulation explosion-proof outer sheath wire braided sub-+total shielding Class A explosion-proof cable
FB-A-DJYUPG2U	300/500V	Copper core polyethylene insulated explosion-proof outer sheath wire braided total shielding steel tape anouring Class A explosion-proof cable
FB-A-DJYPUG2U	300/500V	Copper core polythylene-insulated explosion-proof outer sheath wire braided subshielded steel tape armouing Class A explosion-proof cable
FB-A-DIYPUPG2U	300/500V	Copper core polyethylene insulation explosion-proof outer sheath metal woven silk +total shielding steel tape armouring class A explosion-proof cable
FB-A-DJYUPG3U	300/500V	Copper core polyethylene insulated explosion-proof outer sheath wire braided total shielding steel wire armouring Class A explosion-proof cable
FB-A-DJYPUGЗU	300/500V	Copper core polyethylene insulated explosion-proof outer sheath wire braided sub-shielding steel wire armouring Class A explosion-proof cable
FB-A-DJYPUPG3U	300/500V	Copper core polyethylene insulated explosion-proof outer sheath wire braided division + total shielding steel wire armouing class A explosion-proof cable

After the explosion-proof test, the cable results are shown in the figure below

Explosion-proof cable explosion damage test result table
Cable serial number	The first root	The second root	The third root	The fourth root	The fifth root	The six root
Distance from the center of the explosion /m	2.5	2.3	2.2	2.1	2.0	1.0
Cable Damage Result	Good condition	Good condition	Good condition	Good condition	Moderate damage	Serious damage

1.20℃ conductor DC resistance in accordance with GB/T3956-2008 standard:
2.20℃ insulation resistance per kilometer is not less than 3000MΩ;
3. The finished cable should withstand 1.0kV, 1min power frequency voltage test without breakdown.

Standards	Name
Q/WHY115	Explosion-proof power cable with rated voltage 450/750V  and below
GB3836.1-2010	Explosive atmospheres – Part 1: General requirements for equipment
IEC364-5-523-1999	Electrical installations in buildings – Current carying capacity of cabling systems
GB/T16895.15-2002	Electrical installations in buildings -Current carying capacity of cabling systems
GB50217-2007	Code for design of electric power engineering cables
AQ3009-2007	Electrical explosion-proof safety code for hazardous places

In the design and application, it is the same as the ordinary cable, the wiring method is simple, the space is small, the laying method is more diverse,and the maintenance is easy.
