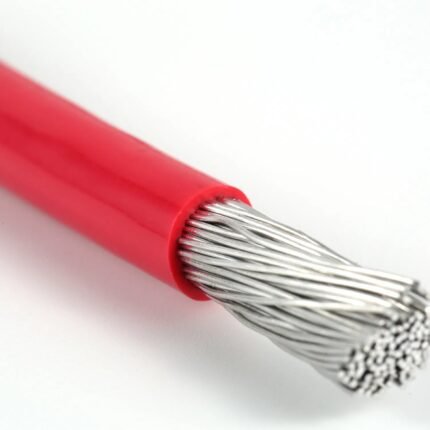

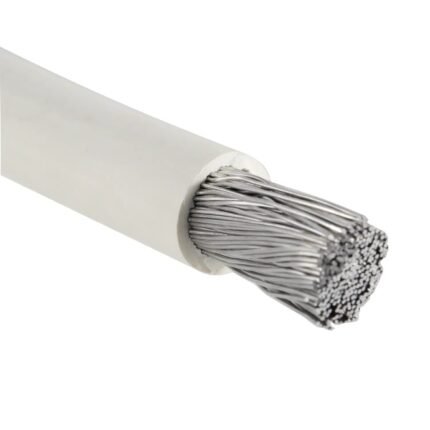

Flexible cables & cords for electric motors leads

Application

This product applied for winding leads of electric motors with maximum continuous operating temperature of 70℃；90℃; 125℃ & 150℃; 180℃.

Executive standard

70℃ Flexible Cable(Wire) for Motor Connection: JB/T6213.2-2006、Q/WHY 73
90℃ Flexible Cable(Wire) for Motor Connection: JB/T6213.3-2006、Q/WHY 73
125℃ & 150℃ Flexible Cable(Wire) for Motor Winding Connection: JB/T6213.6-2006
180℃ Flexible Cable(Wire) for Motor Winding Connection: JB/T6213.4-2006

Rated Voltage

70℃ Flexible Cable(Wire) for Motor Connection: 500V
90℃ Flexible Cable(Wire) for Motor Connection: 500V、1000V、3000V、6000V、10000V
125℃ & 150℃ Flexible Cable(Wire) for Motor Winding Connection: 500V、1000V、3000V
180℃ Flexible Cable(Wire) for Motor Winding Connection: 500V、1000V

Type and Description

70℃ Flexible Cable(Wire) for Motor Connection

Type	Description
JV	Copper core PVC insulated cables (cords) for winding leads of electric motor
JF	Copper core nitrile PVC compound insulated cables (cords) for winding leads of electric motor

90℃ Flexible Cable(Wire) for Motor Connection

Type	Description
JE	Copper core EPR insulated cables (cords) for winding leads of electric motor
JEF	Copper core EPR insulated Chlorinated polyethylene sheathed cables (cords) for winding leads of electric motor
JEM	Copper core EPR insulated Chlorine ether sheathed cables (cords) for winding leads of electric motor
JEH	Copper core EPR insulated Chlorosulfonated polyethylene(CSP) sheathed cables (cords) for winding leads of electric motor
JH	Copper core chlorosulfonated insulated cables (cords) for winding leads of electric motor

125℃ & 150℃ Flexible Cable(Wire) for Motor Winding Connection

Type	Description
JYJ125	Copper core 125’℃ cross-linked polyolefin insulated cables (cords) for winding leads of electric motor
JYJ150	Copper core 150’℃ cross-linked polyolefin insulated cables (cords) for winding leads of electric motor

180℃ Flexible Cable(Wire) for Motor Winding Connection

Type	Description
JG	Copper core Silicon rubber insulated cables (cords) for winding leads of electric motor

Selection Guide

For standard motors (low heat): 70°C or 90℃ cables.
For high-efficiency/high-load motors: 125℃ & 150℃ cables.
For extreme heat or harsh environments: 180°C cables.
