XLPE insulated naval ship water-tightness control cable for rated voltage up to and including 600V

XLPE insulated water-tightness naval-ship Control Cable rated voltage upto 600V

Application

The cable is intended for electric power. lighting and general control system of requisting submarine, naval ship, oil platform and offshore building etc.

Executive standard

GJB1916
MIL-DTL-24643
IEC 60092-353
IEC60331
IEC 60332-3-22
IEC 60754
IEC 61034

Marking

Insulated core shall identified by color or figure andcomply with the stipulations of GJB1916.The sheath color is black and printed with manufacturename, manuiacture year, type,specifications, voltage andlength etc.

Service propertyparameter

Main parameter                                                            Performance index
Rated voltage                                                                                    600V
long time permissible maximum operating temperature         90℃
Cable minimum bending radius
Single-core Cable                                                           ≥6D(D:Cable Diameter，mm)
Three-core Cable                                                            ≥6D(0:cable diameter.mm)
A.C.voltage test                                                               1.5U./5min without puncture

Type and description

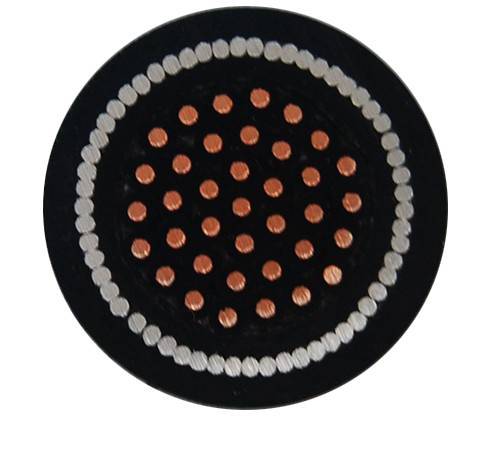

Reference Photos
