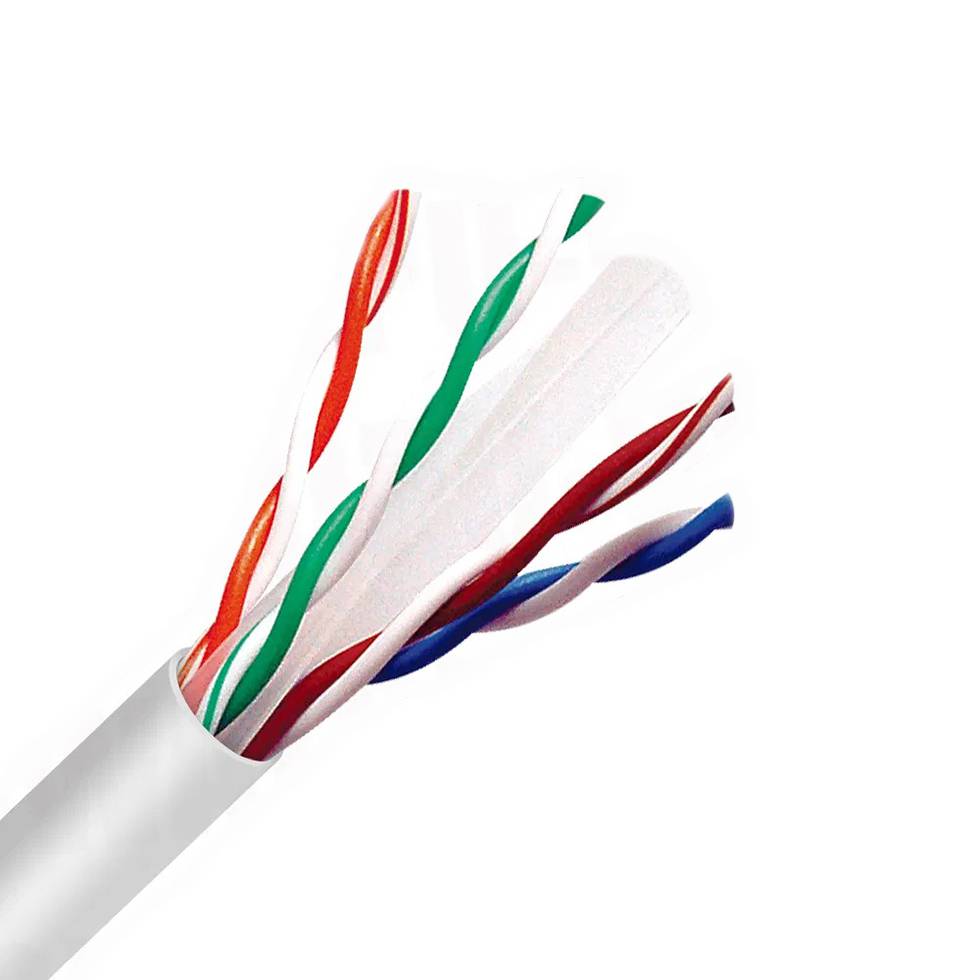

Low smoke digital communication LAN cable for naval ships
Low smoke digital communication LAN cable for naval ships
Application
The cable is intended for naval ship digital communication system such as general digital network, local area networkand digital communication system, the highest frequency band can reach 155MHz (Cat 5E) or 350 MHz (Cat 6). The cablehave the property of stable transmission, low attenuation, good antiinterference & fame-retardant, low-smoke and halogenfree etc.
Executive standard
IEC 61156
TIA/EIA-568-B
IEC 60332-3-22
IEC 60754
IEC61034
Marking
The insulation shall be identified by four color assembly: brown + white, orange + white and blue + white
The sheath is printed with manufacture name, type, specifications, voltage and length etc.
Service propertyparameter
Main parameter Performance index
Rated voltage AC250V,DC500V
The ambient temperature is from-40 to+50℃, and permited to operating in the sea.
long time permissible maximum operating temperature 90℃
The cable can endure water pressure 4.41MPa and two hours crosswise seal test.
Service property parameter
| Item | UNIT | CAT5E | CAT6 |
| Characteristic impedance | Ω | 100±15 | 100±15 |
| Operating capacitance | nF/100m | ≤5.6 | ≤5.8 |
| D.C. conductor resistance at 20℃ | Ω/100m | ≤9.38 | ≤6.658 |
| Delay | ns/100m | ≤538 | ≤536 |
| D.C. resistance unbalance | % | ≤3 | ≤3 |
| Ground capacity unblance | pF/100m | ≤330 | ≤330 |
| long time permissible maximum operating temperature | ℃ | 60 | 60 |
Type and description
| Type | Description |
| JHQYJPA86/SC-C5 (SBYP86/SC-C5) |
XLPE insulated PO inner sheathed tinned copper wire braided shieiding PO outer sheathed low smoke digital communicationAN cable for naval ships |
| JHQYJPA86/SC-6 (SBYP86/SC-6) |
XLPE insulated PO inner sheathed tinned copper wire braided shielding PO outer sheathed low smoke digital communicationLAN cable for naval ships |
| JHQYJPA86/SC-2-C5 (SBYP86/SC-2-C5) |
XLPE insulated PO inner sheathed tinned copper wire braided shielding PO outer sheathed low smoke digital communicationLAN cable for naval ships |
| JHQYJPA86/SC-2-6 (SBYP86/SC-2-6) |
XLPE insulated PO inner sheathed tinned copper wire braided shielding PO outer sheathed low smoke digital communicationAN cable for naval ships |
Service property parameter
| TYPE | CoresNO.XSection | Conductor Size awg |
Cable Dia. Nomal |
Cable Dia. Max. |
CableWeight kg/km |
| JHQYJPA86/SC-C5 (SBYP86/SC-C5) |
4x2x1/0.5 | 24 | 9.5 | 10.5 | 140 |
| JHQYJPA86/SC-6 (SBYP86/SC-6) |
2x(4x2x1/0.5) | 24 | 16 | 17.5 | 297 |
| JHQYJPA86/SC-2-C5 (SBYP86/SC-2-C5) |
4x2x1/0.57 | 23 | 10.5 | 11.5 | 145 |
| JHQYJPA86/SC-2-6 (SBYP86/SC-2-6) |
2x(4x2x1/0.57) | 23 | 18.0 | 19.5 | 310 |
