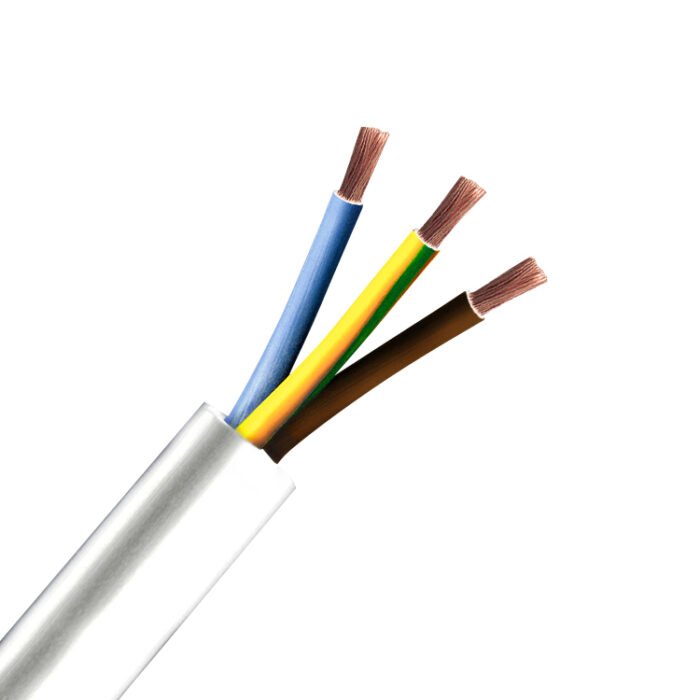

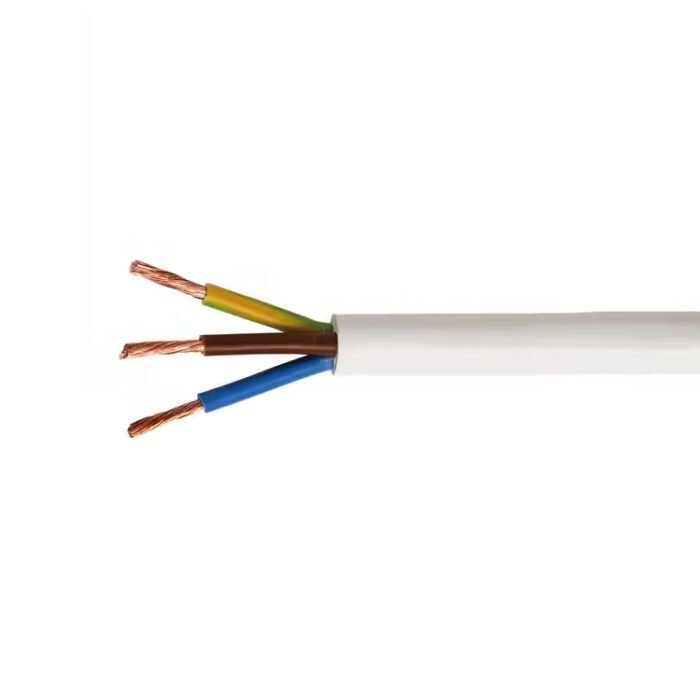

Flexible Cable 318-Y / H05VV-F 300/500V
Applications
318-Y / H05VV-F is an electrical PVC cable with a Class 5 flexible conductor for low-voltage installations. Has a voltage rating of 300/500V and has a PVC (polyvinyl chloride) insulation and sheath. Used for connecting household appliances like washing machines, refrigerators, and other kitchen devices. Suitable for indoor use in environments where the cable is not subject to high mechanical stress.
Features
- Cost-effective
- Voltage Rating: 300/500V
- Good flexibility because the stranded conductors
- Temperature Range: Usually designed to operate within a temperature range of -5°C to +70°C
- Conductor short-circuit operating temperature: No more than 5 s (160℃ when section area below 300mm2, 140℃ when section area above 300mm2)
- Minimum Bending Radius: Flexing 7.5 x cable ø; Fixed installation 4 x cable ø
318-Y / H05VV-F Performance standards
- Harmonized to HD 21.5
- Harmonized to EN 50525-2-11, VDE 0281, IEC 60227, BS 6500
318-Y / H05VV-F Construction
- Conductor: Class 5 plain flexible annealed stranded copper conductor (EN 60228)
- Insulation: Polyvinyl Chloride (PVC) insulated around each conductor
- Sheath: Polyvinyl Chloride (PVC) sheath provides additional protection

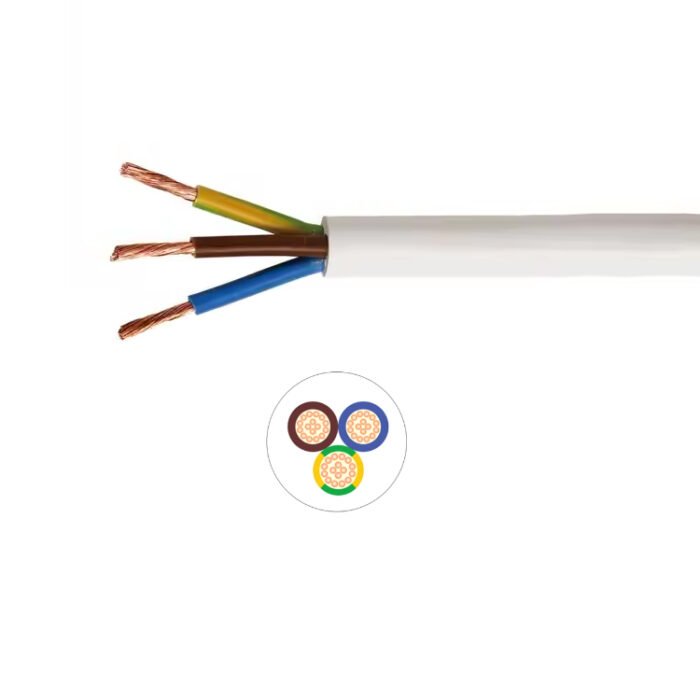

Cable Structure Diagram
